Up to 3.5m gate leaf.

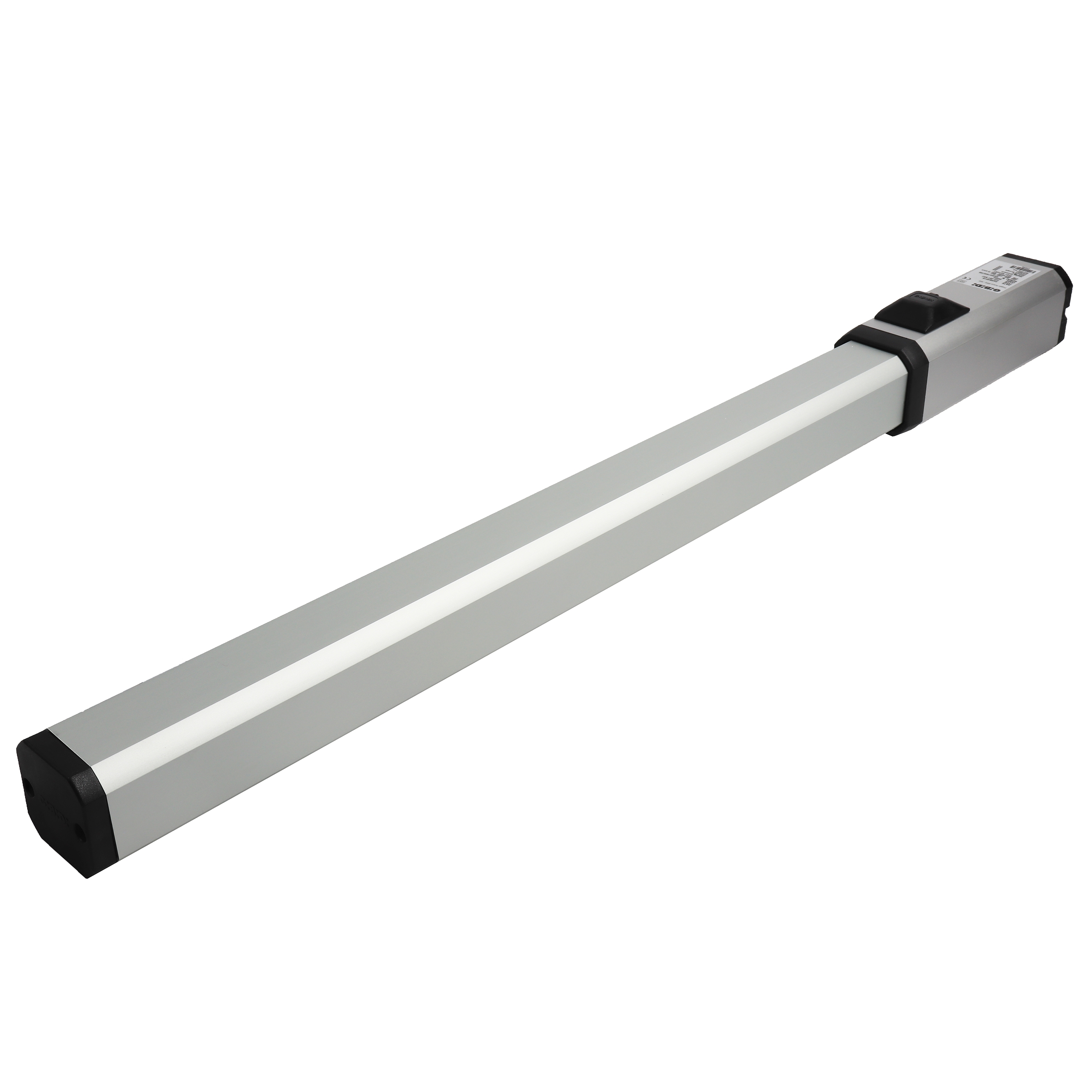

Hydraulic operators
230Vac for heavy duty, medium and light swing gates. Suitable for both residential and intensive use.
| Technical Features | |
| Absorbed Power | 170W |

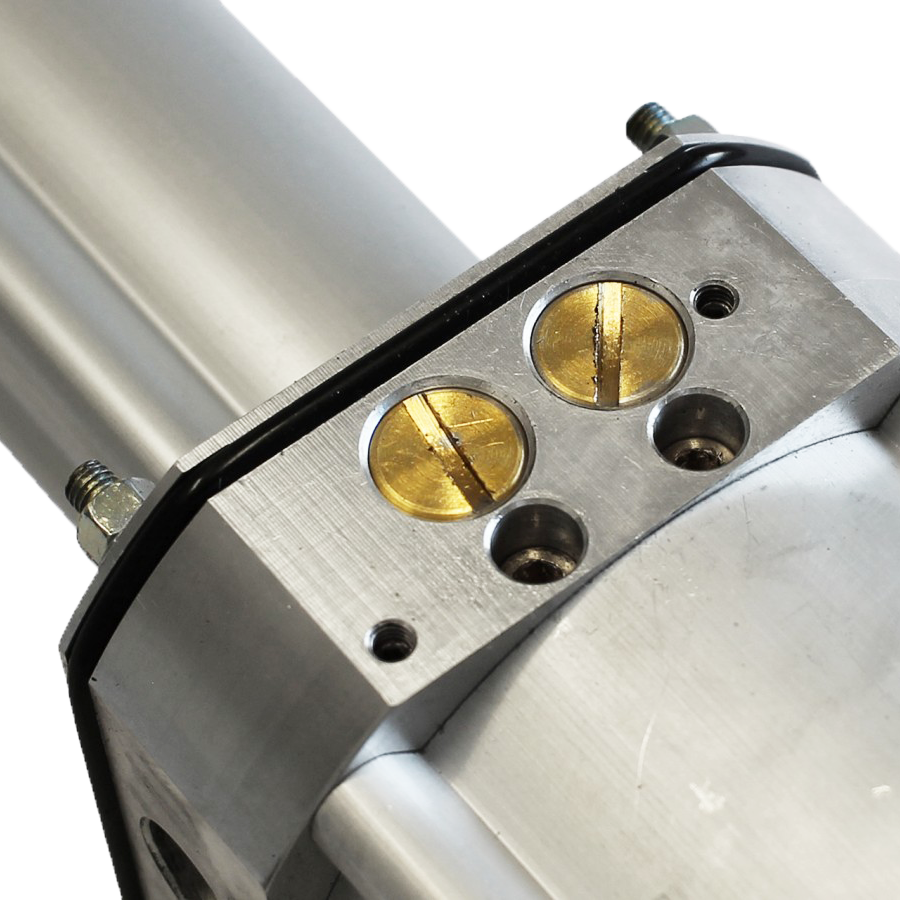

| Adjustable Force | Hydraulic |
| Adjustable Speed | Electronic - Note: When installed in conjunction with the BA230 control board. |
| Encoder/Limit Switches | Physical Stops Only |
| Frequency of Use | 55% |
| Lubrication type | Oil GBD PH-03 |
| Max. Leaf Width | 3.5m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested. |

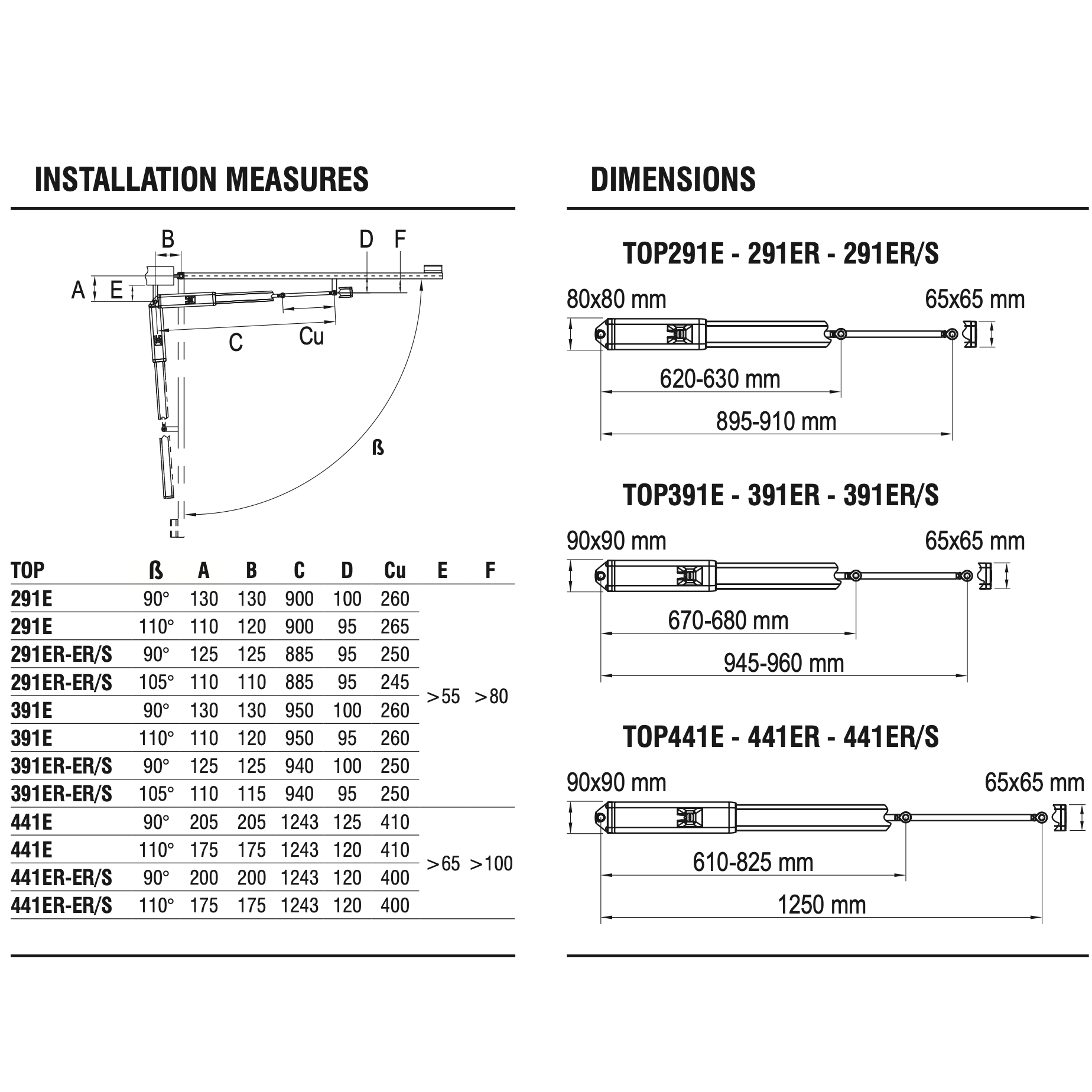

| Max. Rod Stroke | 265mm (290mm for the version E) |
| Max. Thrust Force | 3000N (2200N for the version ER/S) |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 12.5 seconds for 'S' motor (Fast) 25 seconds for 'E' motor (Standard) |
| Operating Temp | -20C / +60C |
| Protection Level | IP65 |
| Rod Speed | 10mm/s (20mm/s for version ER/S) |
| Type of Use | Heavy Duty |
| Weight of Unit | 7.7kg |
