GIBIDI · 20034E

GROUND 634 (24V)

Model:GROUND
Product Code:20034E
Availability:In Stock

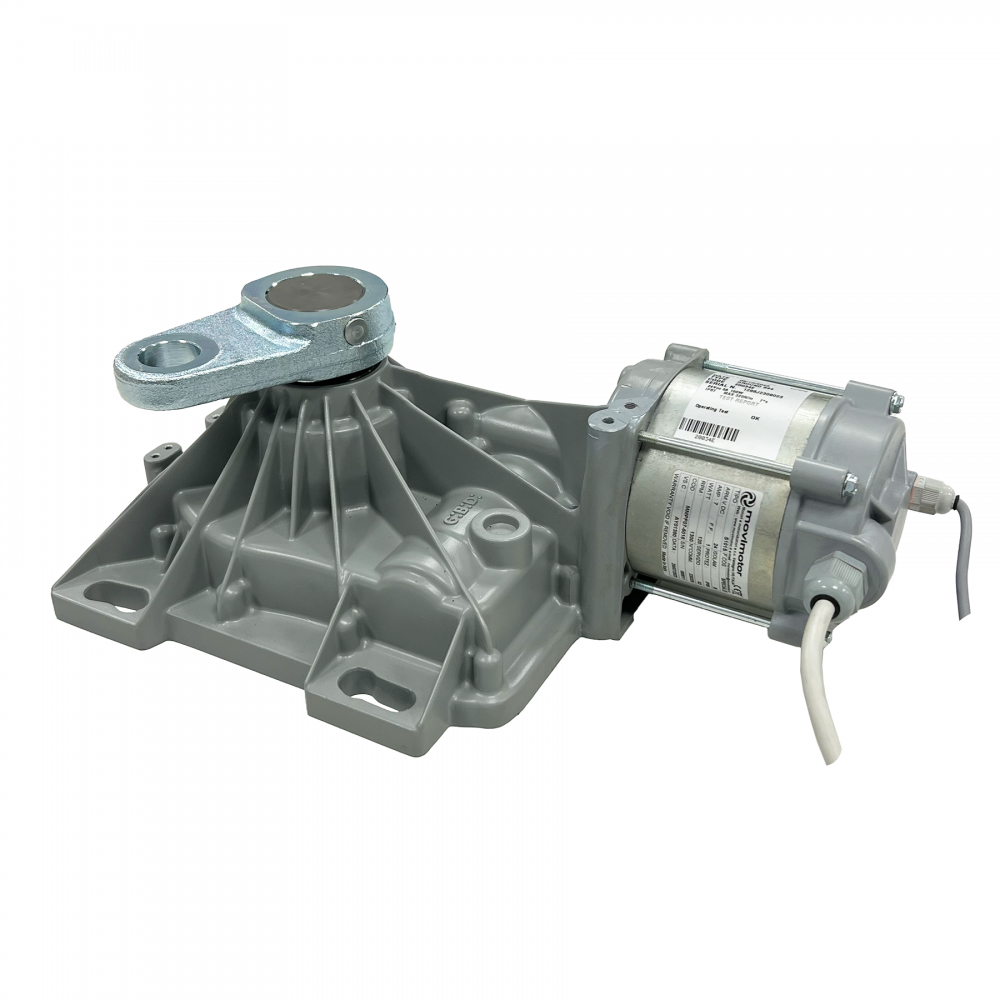

GROUND 634, 24Vdc, underground electromechanical motor with built in encoders, rotor pin, ground arm.

Technical Features
Absorbed Power	150W
Adjustable Force	Electronic
Adjustable Speed	Electronic - Note: When installed in conjunction with the BA230 control board.
Encoder/Limit Switches	Built-in encoder
Frequency of Use	Intensive
Lubrication type	Grease GBD WH-01
Max. Leaf Width	3.5m - Note: In the case of solid gates or a leaf width of over 2m, a supplementary electric lock is suggested.
Max. Opening Angle	110 Degrees
Max. Torque	320Nm
Motor Power Supply	24Vdc
Opening Time (90 degrees)	12.5 seconds
Operating Temp	-20C / +60C
Protection Degree	IP67
Shaft Rotation Speed	7 Degrees per Second
Type of Use	Intensive
Weight of Unit	11.1Kg
