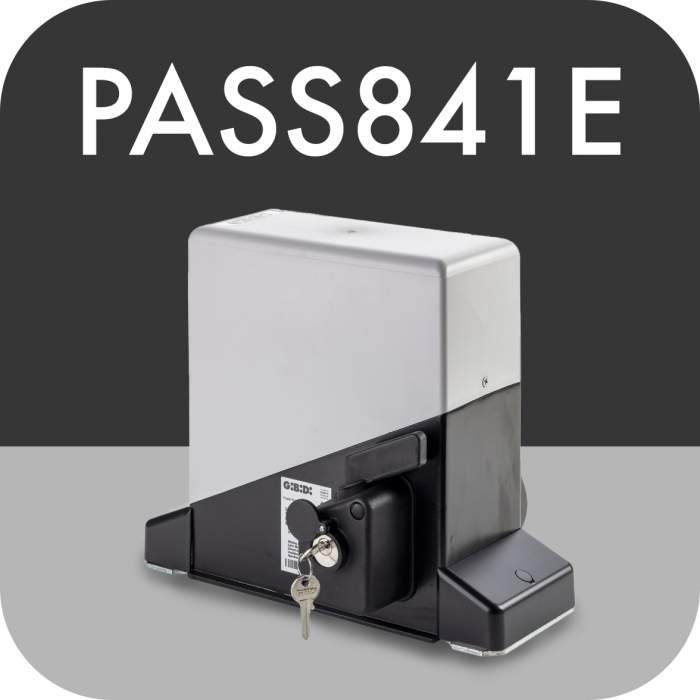

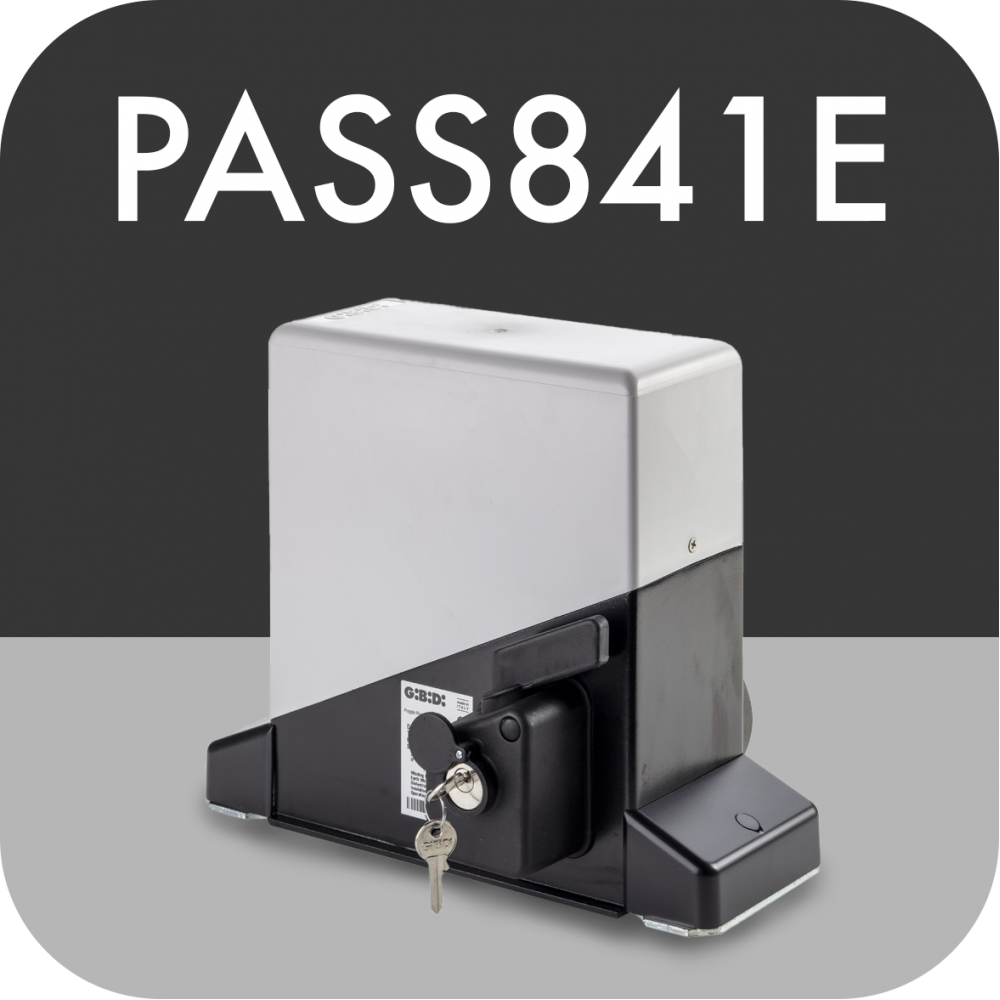

PASS 841E (Motor or Kit)

Buy the GIBIDI PASS 841E (230V) Sliding gate kit, electric sliding gate motor or kit. Gate Automation from GIBIDI. Fast UK delivery.

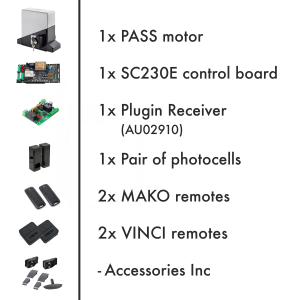

Kit Includes: 1x PASS Motor, 1x SC230E Control Board, 1x Plugin Receiver (AU02910), 2x MAKO Remote Controls, 2x VINCI Remote Controls and 1x Pair of Photocells.

Motor only includes: 1x Motor, limit switches, 1x embedded SC230E control panel

NB: Gear rack, foundation plate and other accessories must be purchased separately.

Note: This version of the PASS is supplied without a clutch.

Irreversible 230Vac electromechanical operator without mechanical clutch. The PASS can be used to automate medium sized sliding gate leaves up to a maximum weight of 800kg, for residential and commercial usage.

EASY TO INSTALL
The position of the control unit is optimised for the engineer, whilst the unit itself provides the option to adjust both the horizontal and vertical axis.

SILENT AND STRONG
The PASS is manufactured with robust, heat-treated gears, which are submerged entirely within an internal oil bath. The operator's structure is constructed from coated aluminium which yields a durable, reliable piece of equipment.

PERFORMANCE
The motor is also submerged in an oil bath to provide the best possible performance, even under heavy usage. The latest PASS gears have been manufactured to be irreversible and anti-sliding.

TECHNOLOGICALLY ADVANCED

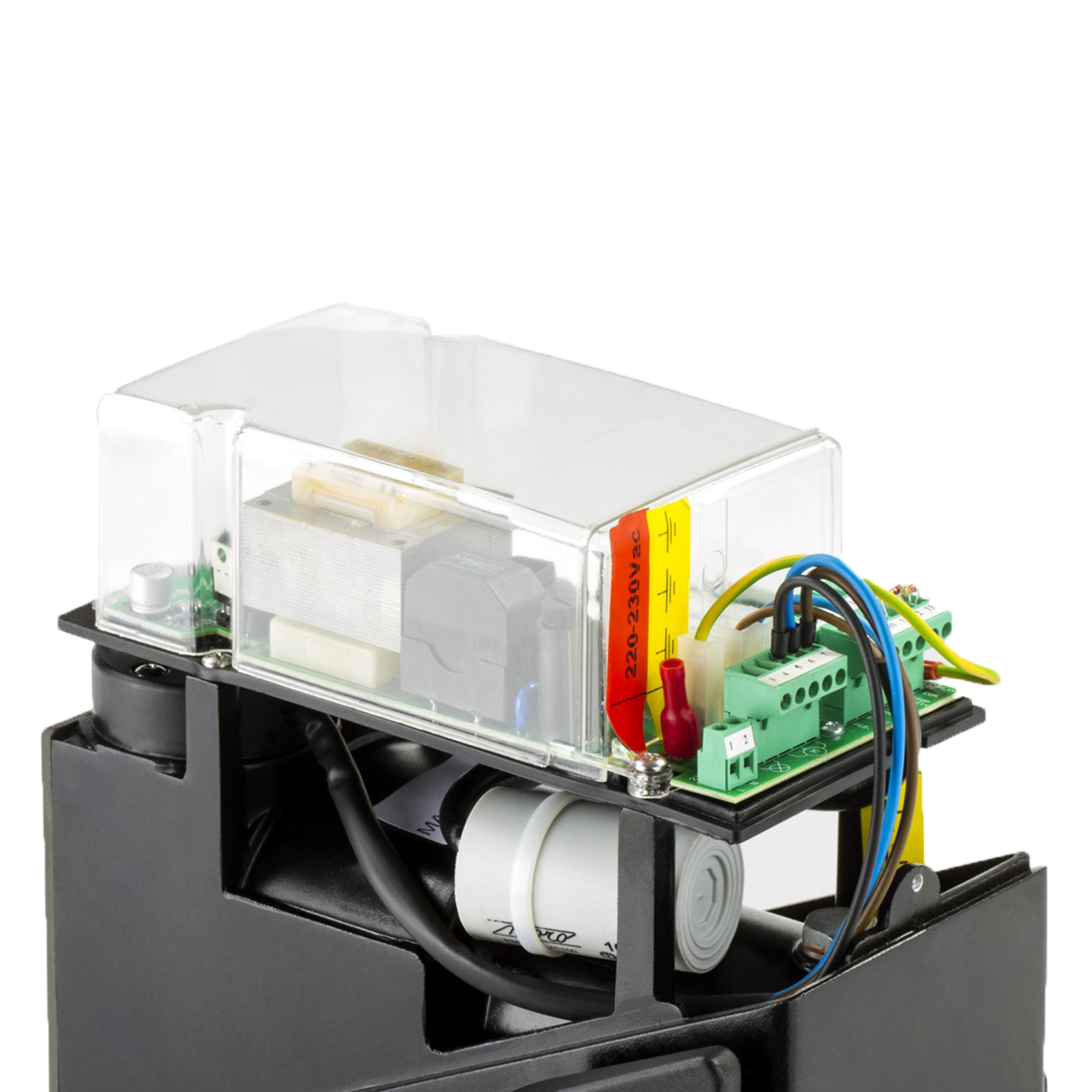

The embedded SC230E control unit is equipped with inputs for the required safety devices, has embedded encoder technology for efficient self-learning, and provides the engineer with the option to adjust the anti-crushing sensitivity: All as denoted in EN12453.

DESIGN
With its direct horizontal motor measuring just 100mm in depth, the PASS is one of most compact operators in its class.
