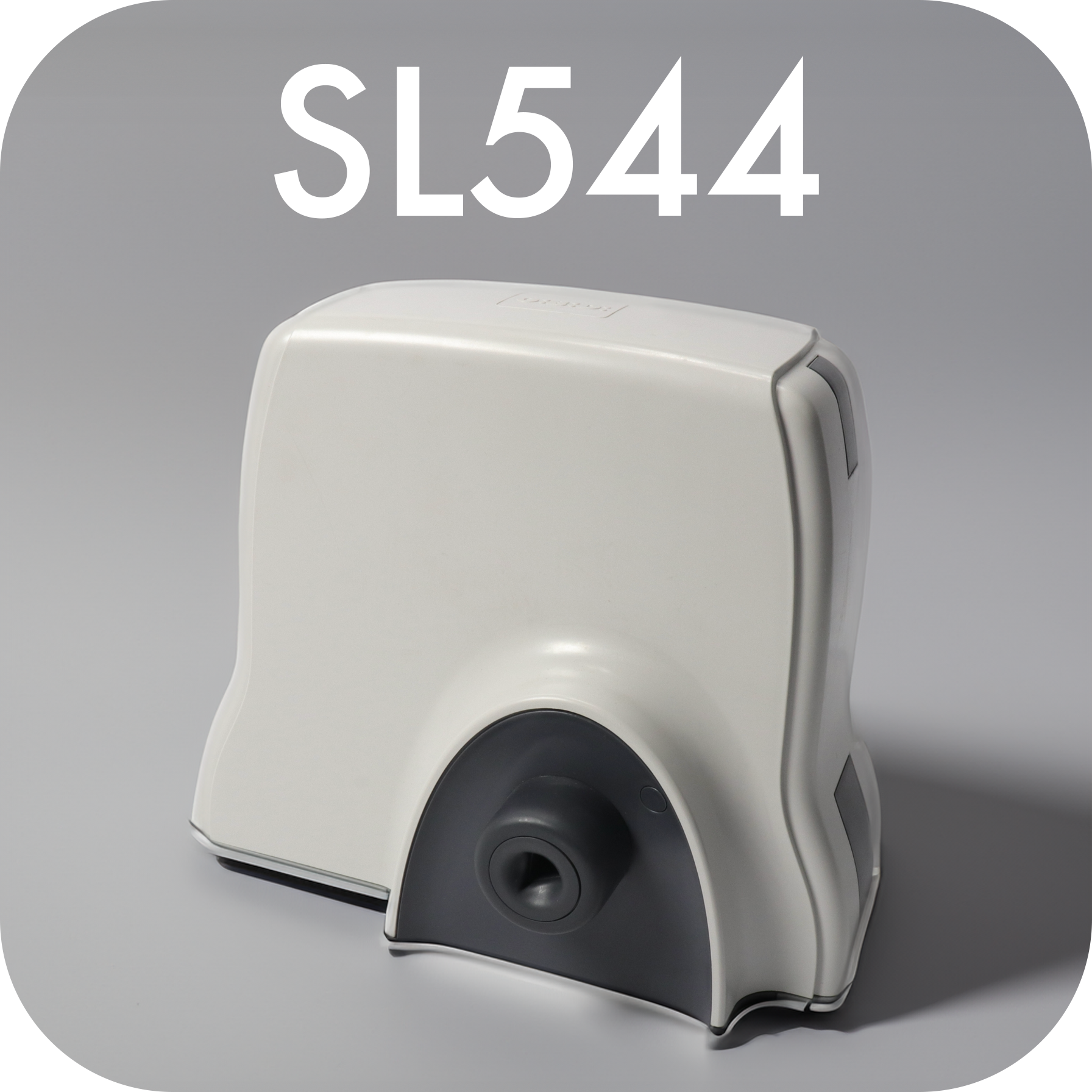

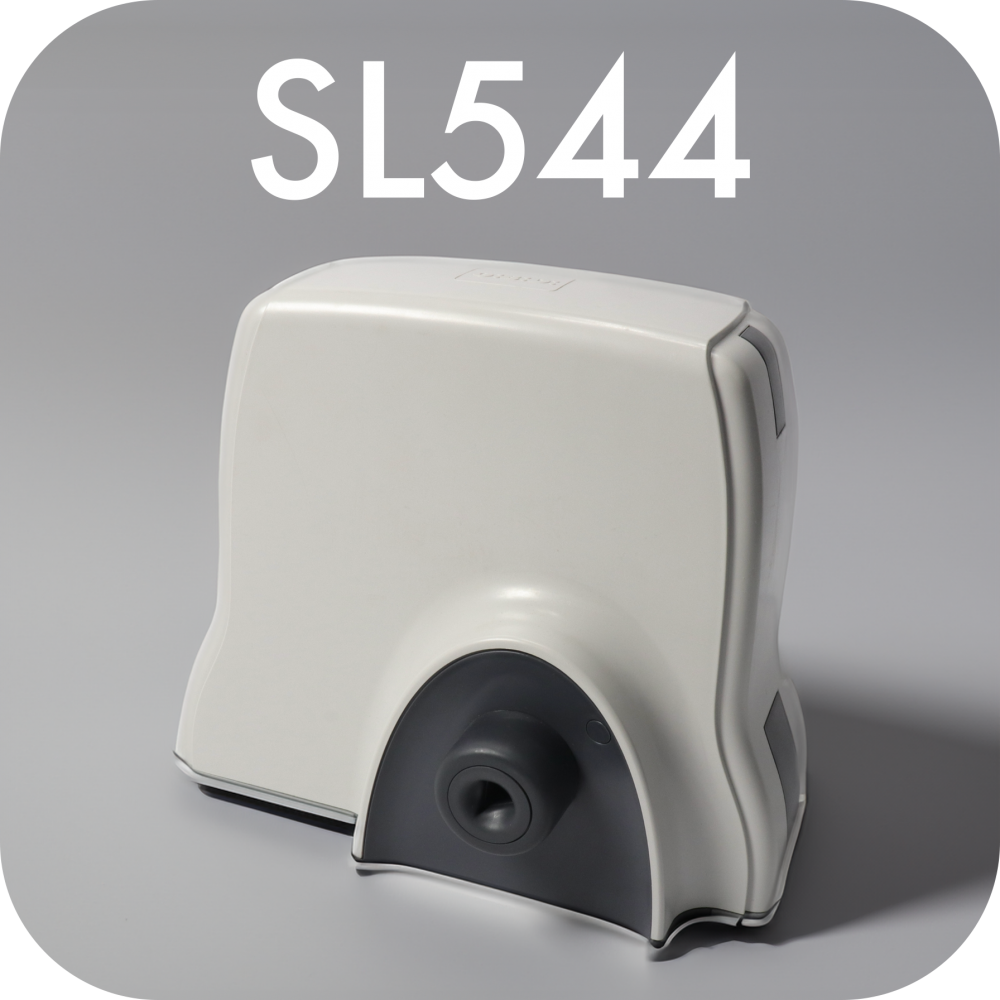

SL544 Sliding Gate Automation Motor.

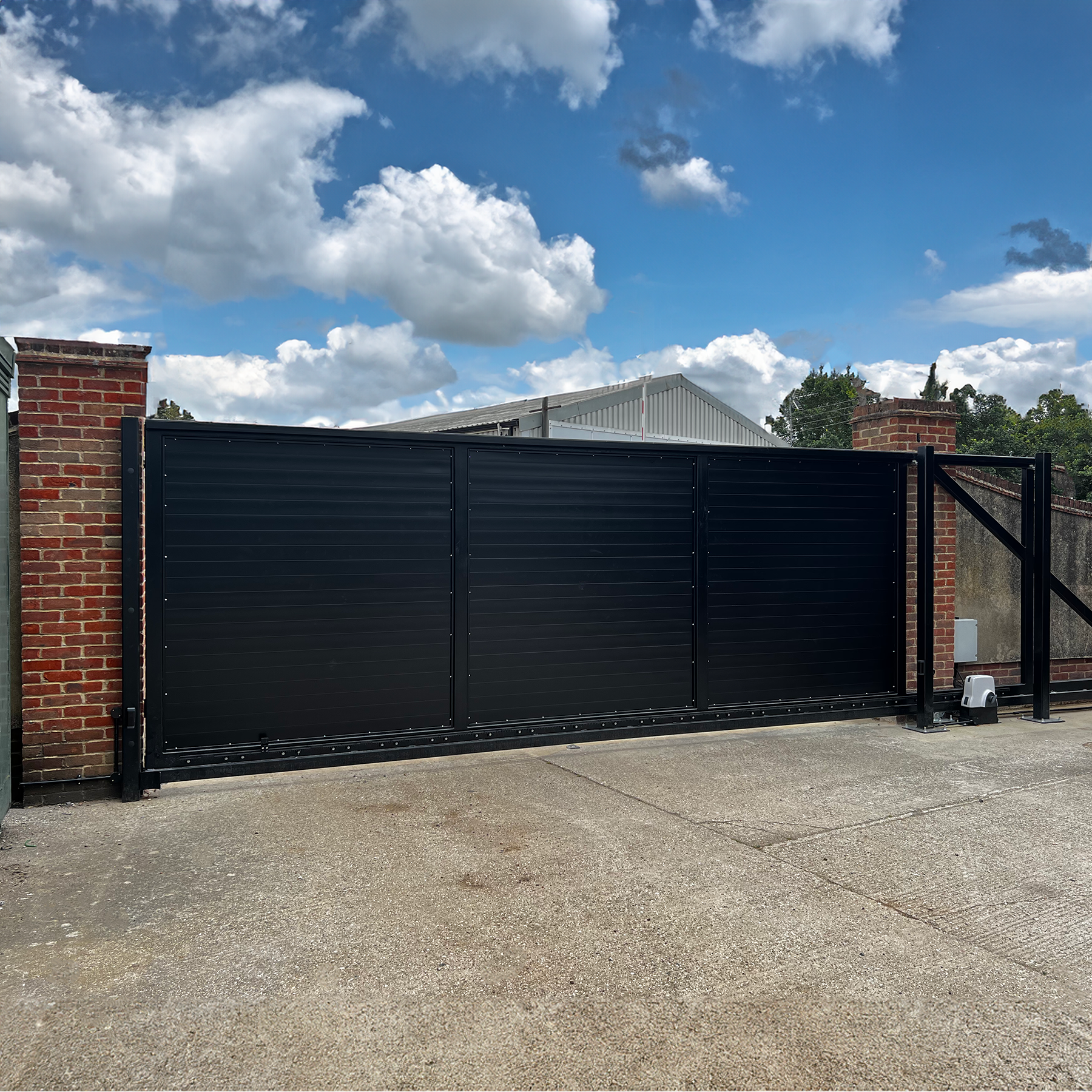

Irreversible 24Vdc electromechanical sliding gate operator with digital control and Wizard setup. The SL544 can be used to automate small and medium sized sliding gate leaves up to a maximum weight of 500kg, for residential and light commercial usage.
Motor only includes: 1x SL544 Motor with Embedded Control Board, 1x Embedded Radio Receiver. NB: Additional gear rack and other accessories must be purchased separately.

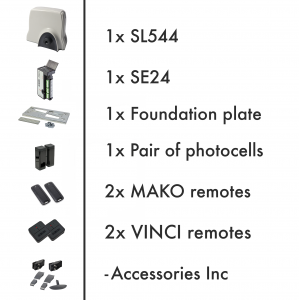

Kit includes: 1x Motor, 1x Embedded Control Board, 1x Embedded Radio Receiver, 1x Foundation plate, 2x MAKO Remote Controls, 2x VINCI Remote Controls and 1x Pair of Photocells
EASY TO INSTALL

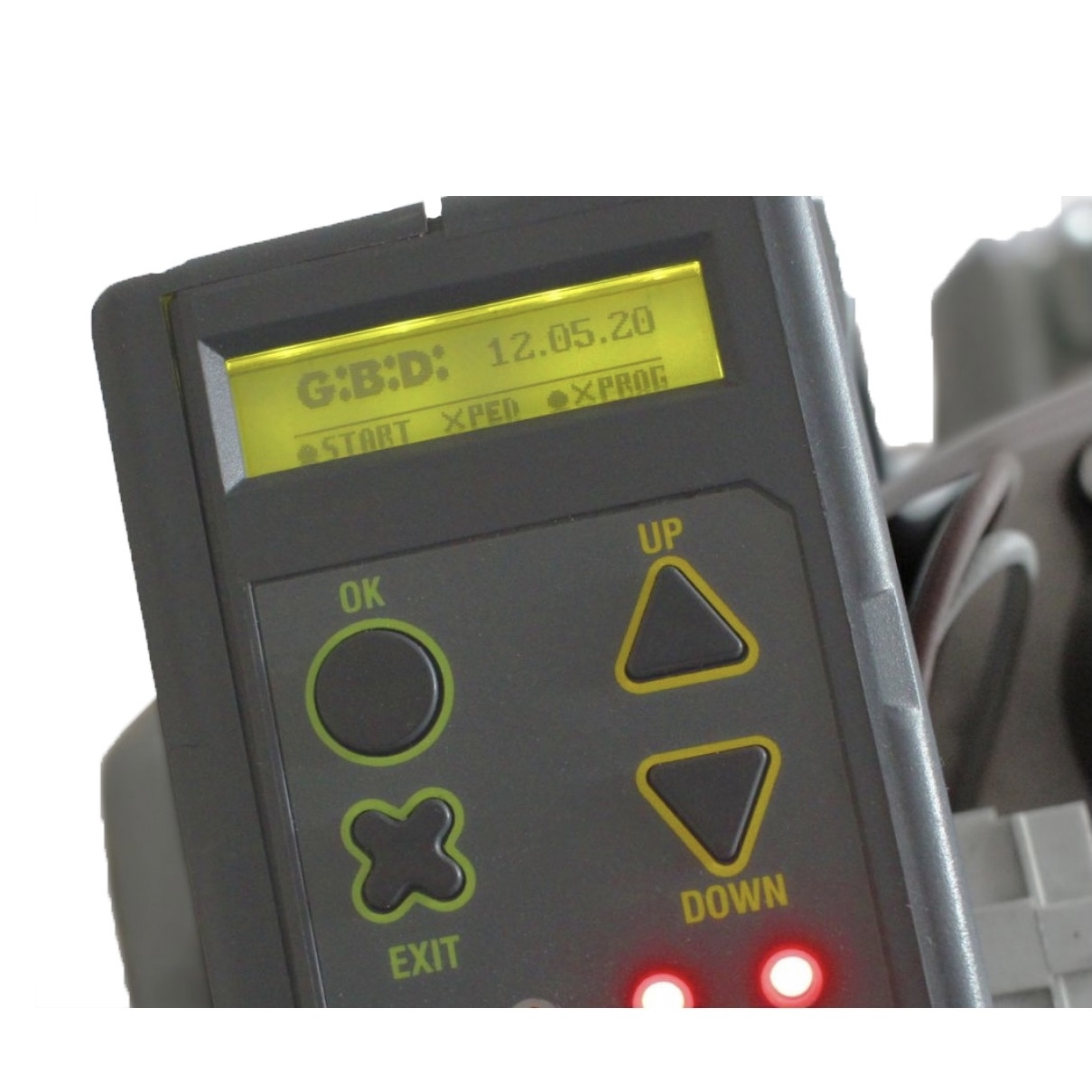

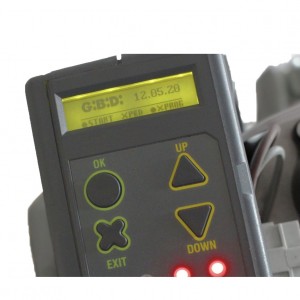

The new graphic display and step by step set up guide makes the SL544 incredibly straight forward to program.
SILENT AND STRONG

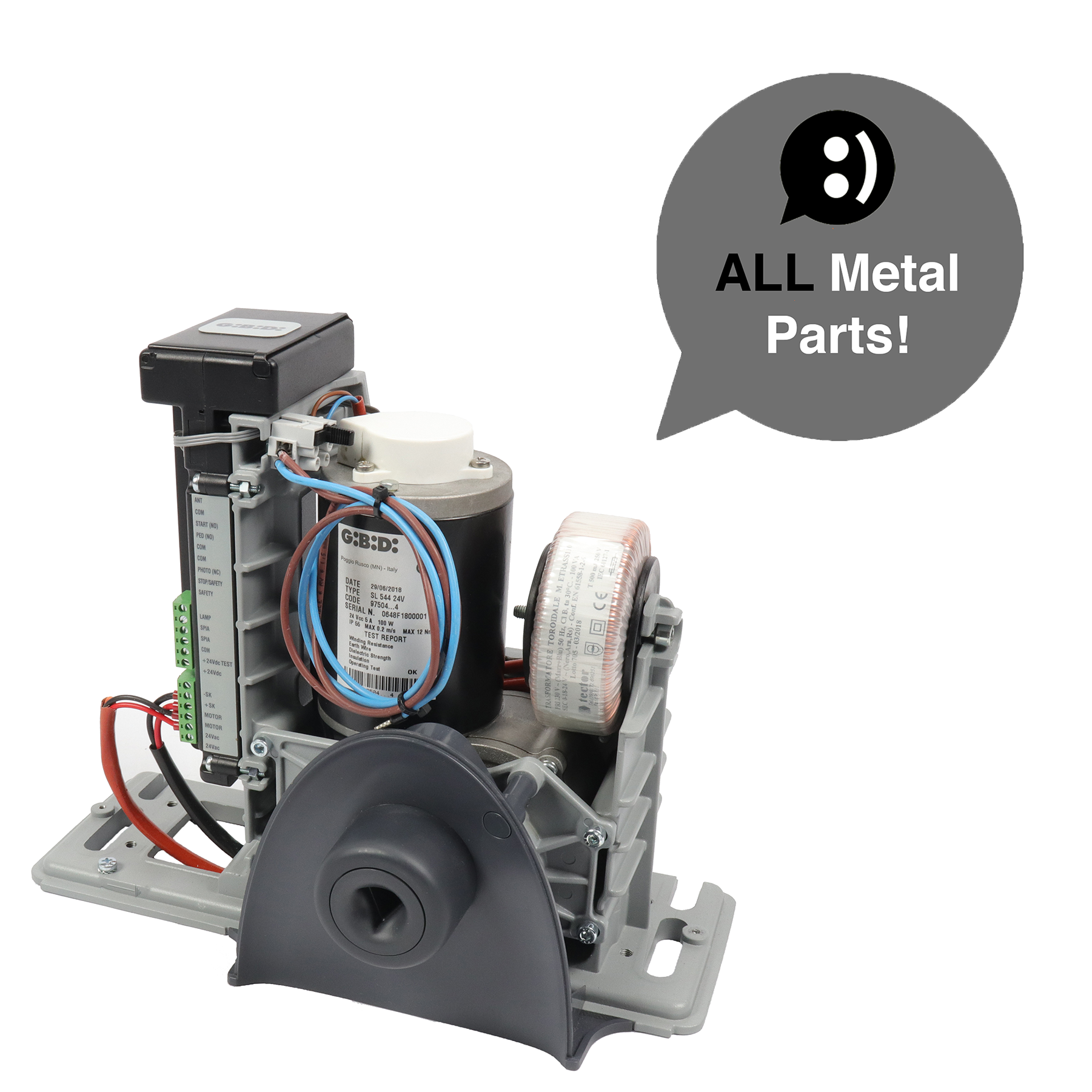

The SL544's gears are manufactured in steel and bronze aluminium, providing longevity of use and reliability during the operator's lifespan.
FAST & RELIABLE
The SL544 can run at up to 22cm/sec, and with its 24Vdc technology, it is able to provide the highest levels of safety as denoted by EN12453.
TECHNOLOGICALLY ADVANCED
The SE24 control unit has full 'auto-learning' of gate parameters, as well as a Real Time Clock (RTC) with battery to manage the timer and log events.
BATTERY BACK-UP
Through the simple addition of an optional battery kit, in the event of a power cut, the gate will still operate.
| Technical Features | |
| Absorbed Power | 100W |
| Adjustable Speed | Yes |
| Adjustable Torque | Electronic |
| Frequency of Use | 90% |
| Gate Speed | 0.22m/s - Z=16M4 |
| Lubrication type | GBD WH-01 Grease |
| Max. Gate Weight | 500Kg |
| Max. Gate Width | 6m |
| Max. Torque | 12Nm |
| Motor Power Supply | 24Vdc |
| Nominal Torque | 6Nm |
| Opening Time | 13.2m / min |
| Operating Temp | -20C / + 60C |
| Protection Degree | IP55 |
| Type of Use | Heavy Duty |
| Weight of Unit | 8Kg |
