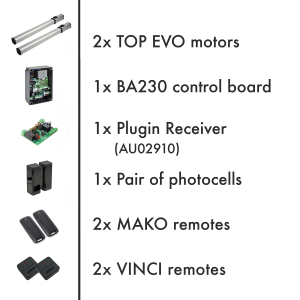

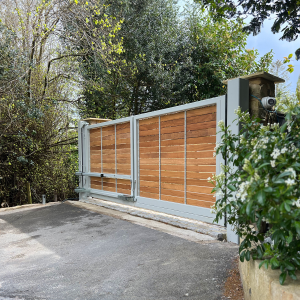

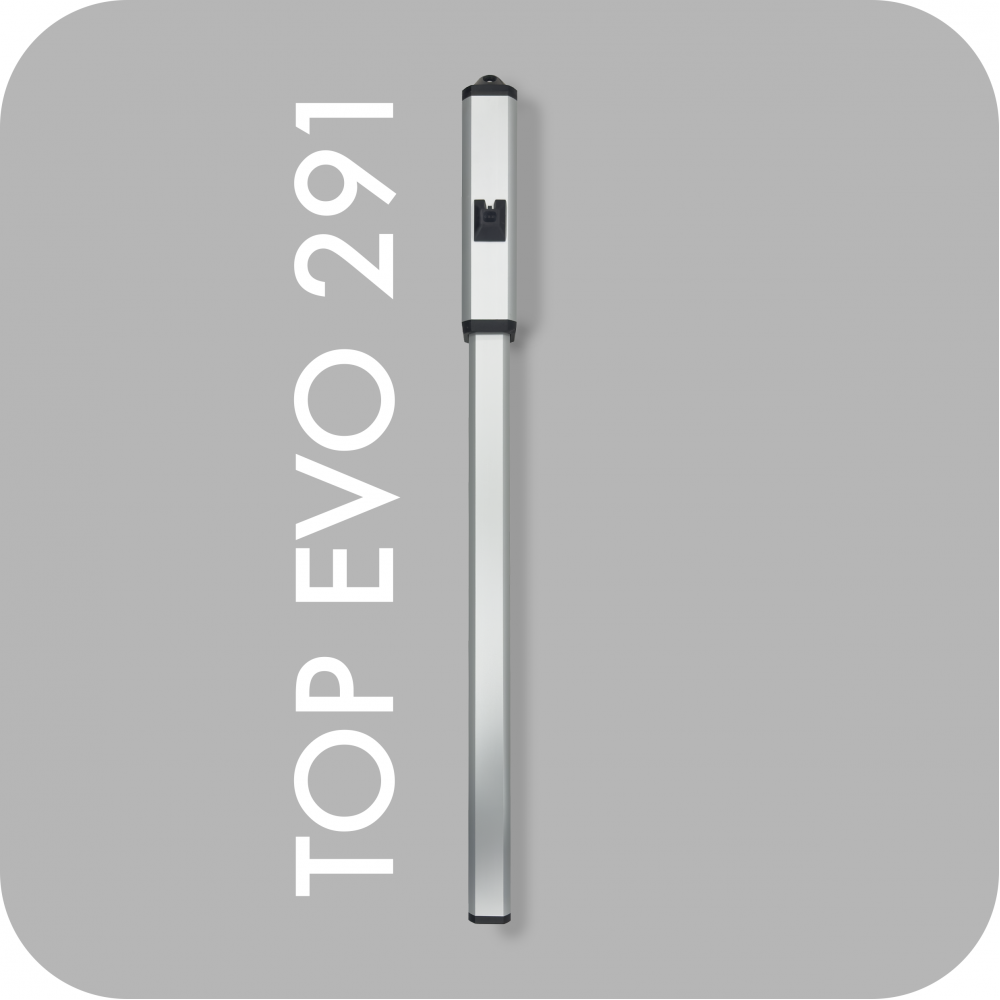

Double kits include: 2x TOP EVO motors, 1x BA230 control board, 2x MAKO remotes, 2x VINCI remote controls, 1x Plugin receiver (AU02910), 1x Pair of photocells

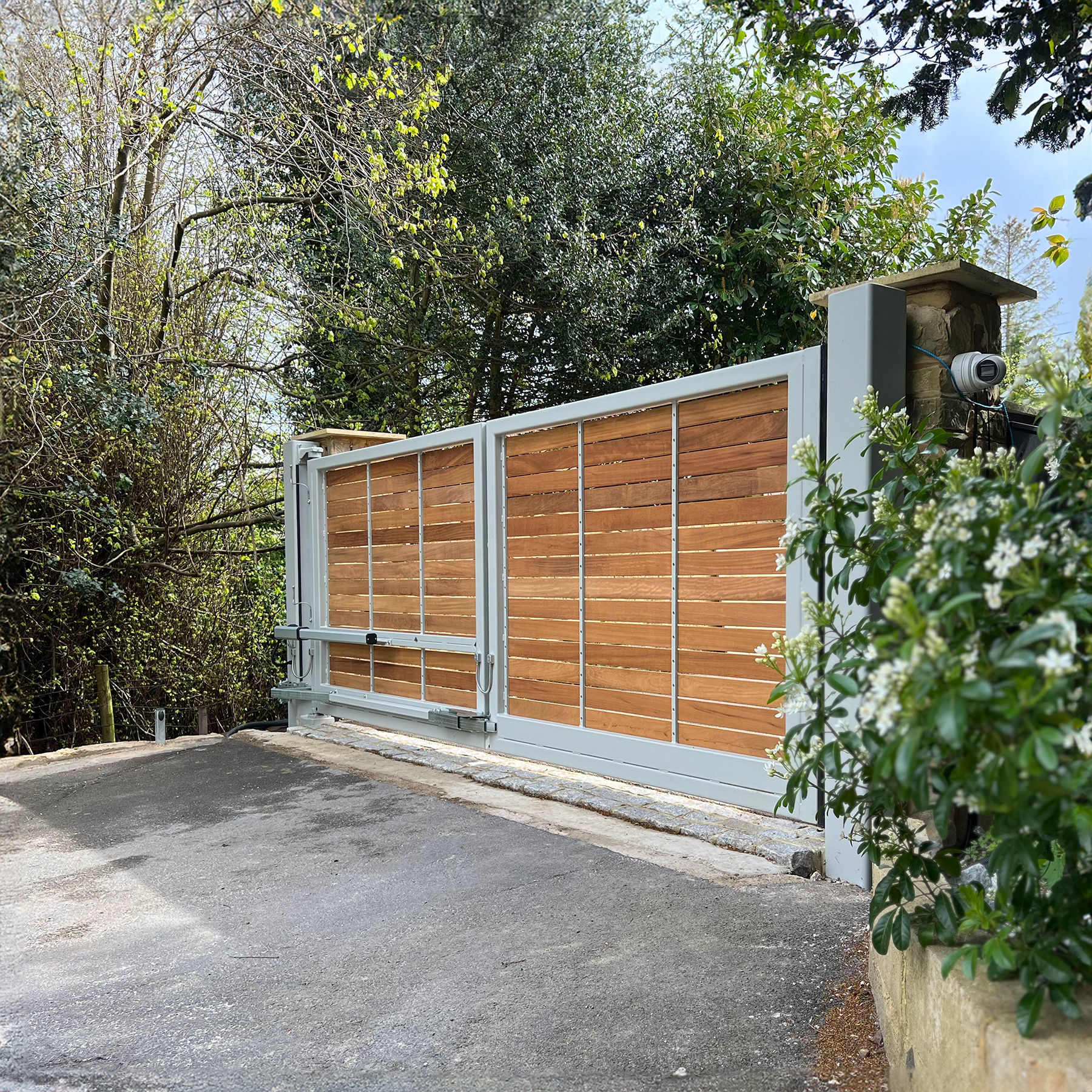

230Vac for heavy duty, medium and light swing gates. Suitable for both residential and intensive use.
| Technical Features | |
| Absorbed Power | 170W |

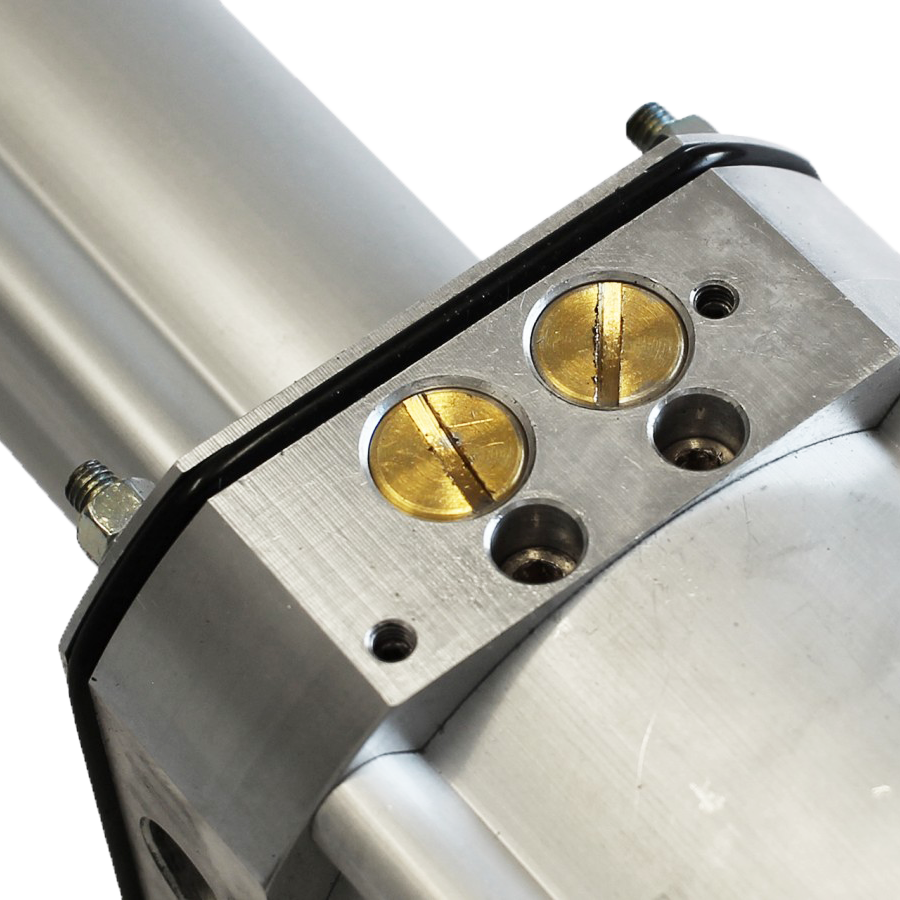

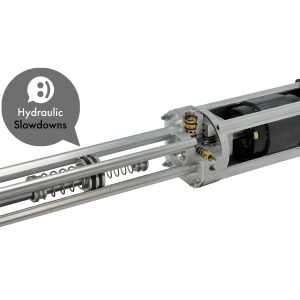

| Adjustable Force | Hydraulic |
| Adjustable Speed | Electronic - Note: When installed in conjunction with the BA230 control board. |
| Encoder/Limit Switches | Physical Stops Only |
| Frequency of Use | 55% |
| Lubrication type | Oil GBD PH-03 |

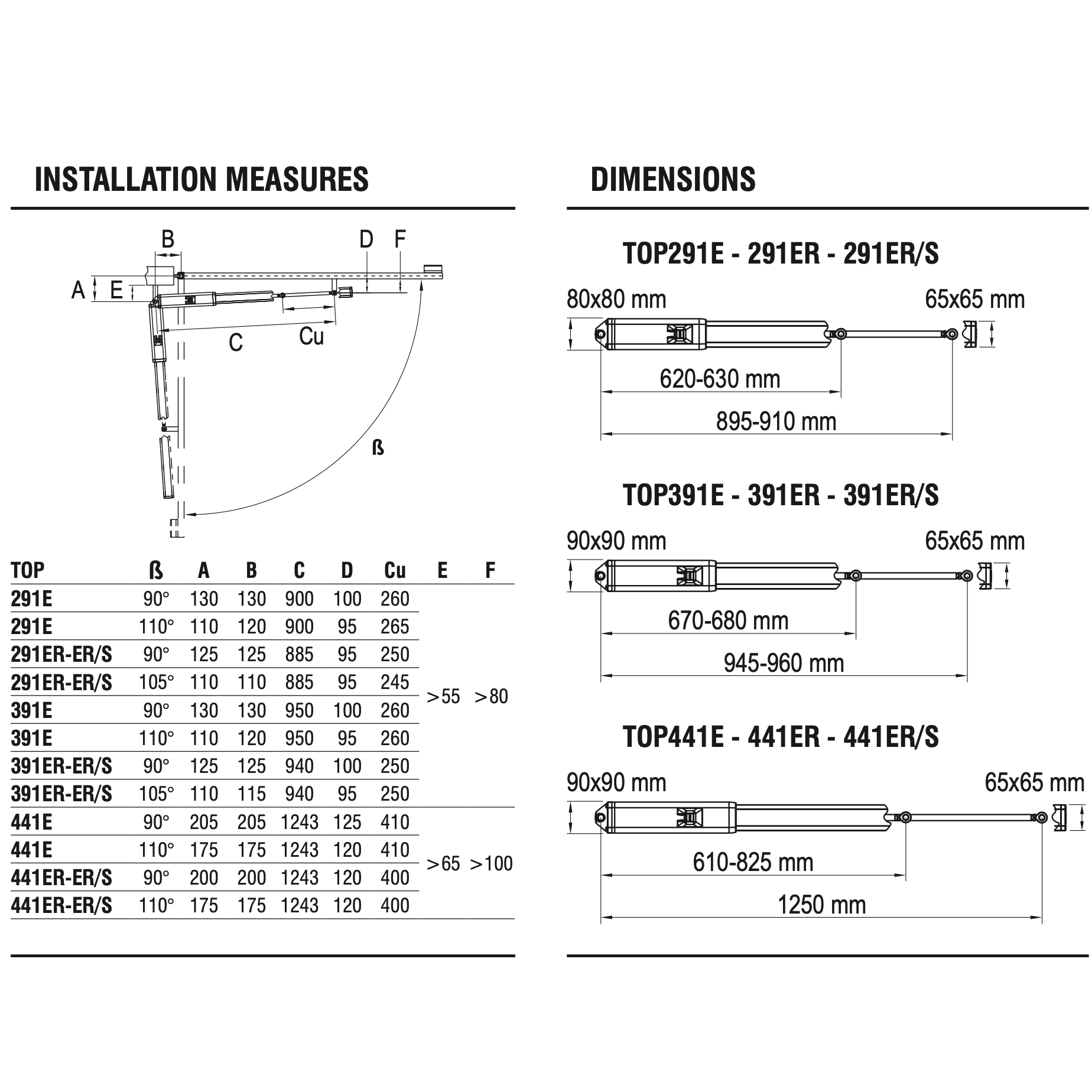

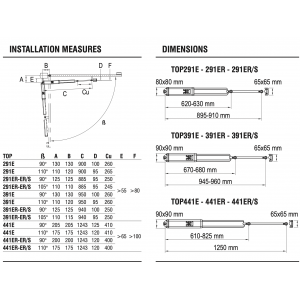

| Max. Leaf Width | 3.5m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested. |
| Max. Rod Stroke | 265mm (290mm for the version E) |
| Max. Thrust Force | 3000N (2200N for the version ER/S) |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 12.5 seconds for 'S' motor (Fast) 25 seconds for 'E' motor (Standard) |
| Operating Temp | -20C / +60C |
| Protection Level | IP65 |
| Rod Speed | 10mm/s (20mm/s for the version ER/S) |
| Type of Use | Heavy duty |
| Weight of Unit | 7.7kg |
GIBIDI UK is the official sole UK distributor for GIBIDI Italy. Create a free trade account to unlock up to 45% off RRP, a 3-year manufacturer warranty and full technical support on every product.
TOP EVO Manual
