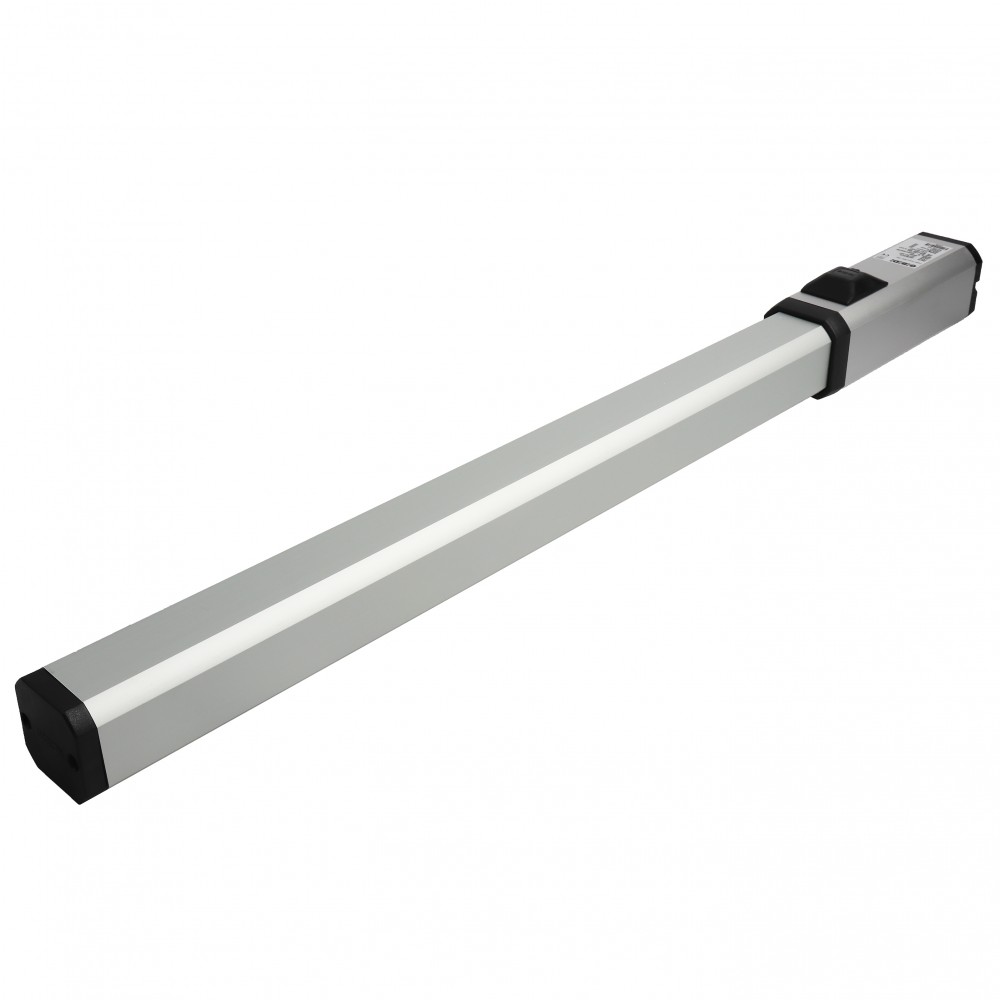

The TOP EVO 291 (230V) is an above-ground hydraulic ram operator from GIBIDI, for swing gates with leaves up to 3.5m, available as a Standard or Fast motor. Supplied as the operator only, ideal for replacing an existing operator or adding to an existing installation. Fast UK delivery from GIBIDI UK.
Control board, brackets and accessories sold separately. Select Standard or Fast when ordering.

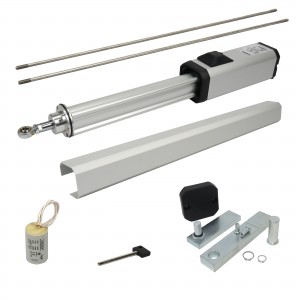

Every TOP EVO 291 is available in two versions: the Standard motor with a 10mm/s rod speed, or the Fast 'S' motor which doubles the speed to 20mm/s and opens the gate through 90 degrees in around 12.5 seconds. Choose the version to suit the site when ordering.
The TOP EVO features a new die-cast aluminium back and oversized tie-rods, built for heavy duty use across residential and intensive installations.
New fully integrated valves let you set the motor to reversible, irreversible or mixed modes on both the opening and the closing, so one operator covers a wide range of gate and locking configurations.
Force is adjusted hydraulically on the operator, and the opening speed can be adjusted electronically when installed in conjunction with the BA230 control board. Positioning is by physical stops.
Every TOP EVO is fully vacuum-sealed at the factory, so once installed it never needs its oil topped up or replaced. No oil changes, no ongoing hydraulic maintenance, just a long and reliable working life.
| Technical Features | |
| Absorbed Power | 170W |
| Adjustable Force | Hydraulic |
| Adjustable Speed | Electronic - Note: When installed in conjunction with the BA230 control board. |
| Encoder/Limit Switches | Physical Stops Only |
| Frequency of Use | 55% |
| Lubrication type | Oil GBD PH-03 |
| Max. Leaf Width | 3.5m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested. |
| Max. Rod Stroke | 265mm (290mm for the version E) |
| Max. Thrust Force | 3000N (2200N for the version ER/S) |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 12.5 seconds for 'S' motor (Fast) 25 seconds for 'E' motor (Standard) |
| Operating Temp | -20C / +60C |
| Protection Level | IP65 |
| Rod Speed | 10mm/s (20mm/s for version ER/S) |
| Type of Use | Heavy Duty |
| Weight of Unit | 7.7kg |
GIBIDI UK is the official sole UK distributor for GIBIDI Italy. Create a free trade account to unlock up to 45% off RRP, a 3-year manufacturer warranty and full technical support on every product.
