ART 5000 (230V)
GIBIDI · 30510

ART 5000 (230V)

  • Model:ART
  • Product Code:30510
  • Availability:In Stock
Login to View Prices & Options

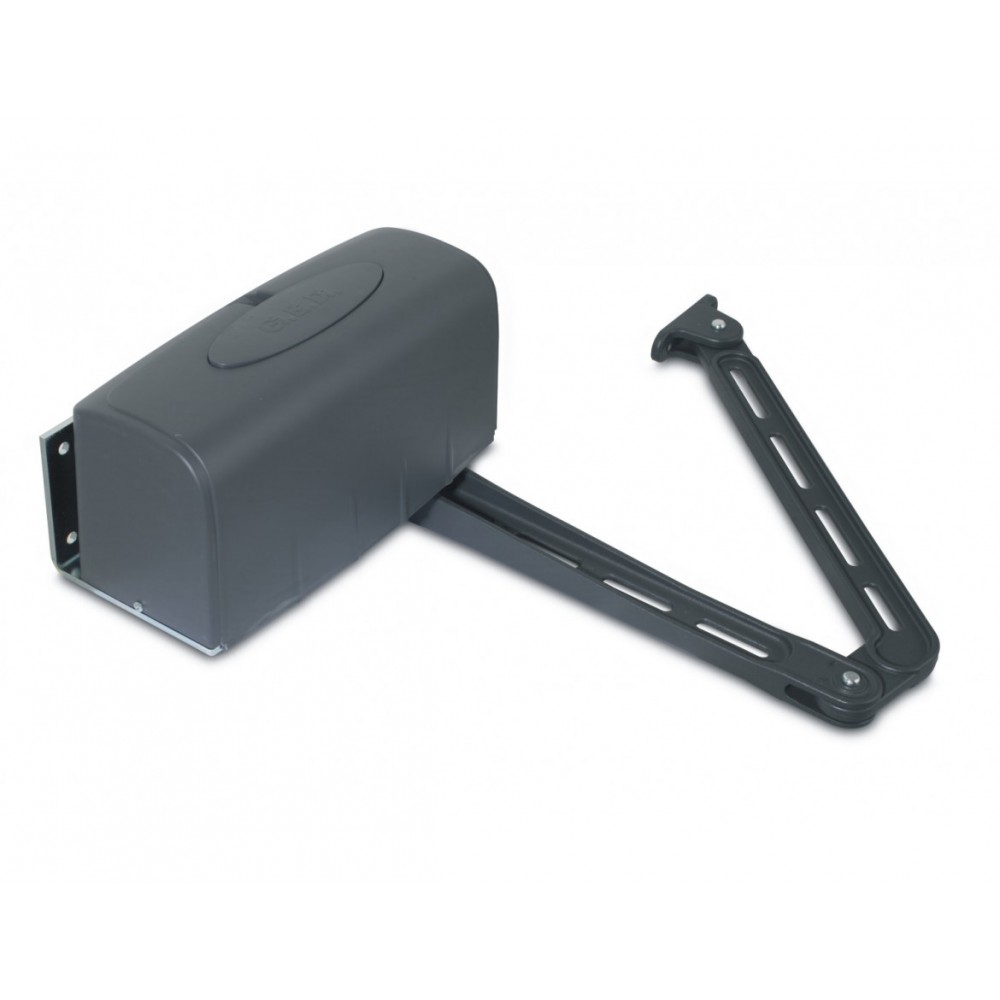

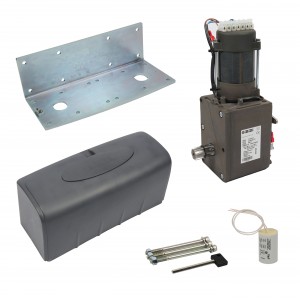

ART 5000 230Vac, articulated electromechanical motor with open and closed limit switches. Operator only with articulated arm.

Technical Features
Absorbed Power200W
Adjustable ForceElectronic - Note: When installed in conjunction with the BA230 control board.
Encoder/Limit SwitchesLimit Switches O/C
Frequency of Use30%
Lubrication typeGrease GBD WH-01
Max. Leaf Width3m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested.
Max. Torque250Nm
Motor Power Supply230Vac - 50/60Hz
Opening Time (90 degrees)11.25 seconds
Operating Temp-20C / +60C
Protection DegreeIP53
Shaft Rotation Speed7-8 Degrees per Second
Type of UseResidential
Weight of Unit11.1Kg

Tags: ART 5000 - Motor Only
