GIBIDI · K880BF

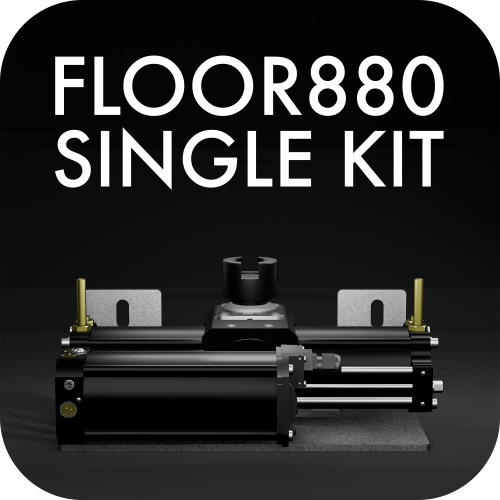

FLOOR 880 (230V) - SINGLE KIT

Model:FLOOR
Product Code:K880BF
Availability:In Stock

The FLOOR 880 (230V) Single Kit is a complete underground hydraulic gate automation package from GIBIDI, for a single swing gate of medium size and weight. Fitted below ground for a fully invisible installation, it suits both residential and heavy-usage sites. Fast UK delivery from GIBIDI UK.

Single Kit Includes

1x FLOOR 880 Motor
1x Foundation Box
1x BA230 Control Board
2x MAKO Remote Controls
2x VINCI Remote Controls
1x Plug-in Receiver Board (AU02910)
1x Pair of Photocells

Couplings, bushings and bosses included.

At a Glance

Power: 230Vac hydraulic
Max opening angle: 180°
Opening time (90°): 12.5 seconds
Max leaf width: 2.5m
Max torque: 300Nm
Frequency of use: 40%, intensive use

Key Features

Easy to Install

The FLOOR boasts a bespoke self-supporting foundation box system and is ambidextrous upon installation, so one unit covers left-hand and right-hand leaves without different part numbers.

Silent and Fast

The FLOOR 880 opens the gate through 90 degrees in around 12.5 seconds, and the materials and manufacturing process of the gears make the operator virtually silent.

Technologically Advanced

Manufactured using the best available hydraulic closed-circuit, vacuum-packed technology, the FLOOR is complete with speed and force regulators plus a valve system to select reversible, irreversible or fixed modality. The manual unlocking key is supplied as a European profile.

A Complete and Reliable Range

Our latest FLOOR models are the most robust yet, providing openings of 150 or 180 degrees depending on the model selected. Reliability comes from the high quality of the materials used and the factory's stringent hydraulic testing procedure on every unit.

Replacing a FLOOR 810/830?

The FLOOR 880 is the direct replacement for the FLOOR 810 and FLOOR 830. Check the datasheet provided when purchasing, which outlines the minor adaptation required to the foundation box when swapping out a FLOOR 810/830 for a FLOOR 880.

See the FLOOR in Action

Technical Features
Absorbed Power	190W
Adjustable Force	Hydraulic
Adjustable Speed	Yes
Encoder/Limit Switches	Optional Limit Switches
Frequency of Use	40%
Lubrication type	Oil GBD PH-03
Max. Leaf Width	2.5m - Note: In the case of solid gates or a leaf width over 2m, a supplementary electric lock is suggested.
Max. Opening Angle	180 Degrees
Max. Torque	300Nm
Motor Power Supply	230Vac - 50/60Hz
Opening Time (90 degrees)	12.5 seconds
Operating Temp	-20C / +60C
Protection Level	IP67
Shaft Rotation Speed	7 Degrees per Second
Type of Use	Intensive
Weight of Unit	16kg

Tags: FLOOR, KITS, floor 880 bf kit, k880bf, k880/bf, floor, swing gates, 810, 830
