Kit Includes: 1x Motors (Left or Right Handed), 1x BA230 Control Board, 1x 2 Channel Plugin Receiver Board (AU02910), 2x MAKO Remote Controls, 2x VINCI Remote Controls and 1x Pair of Photocells. Fixings Inc.

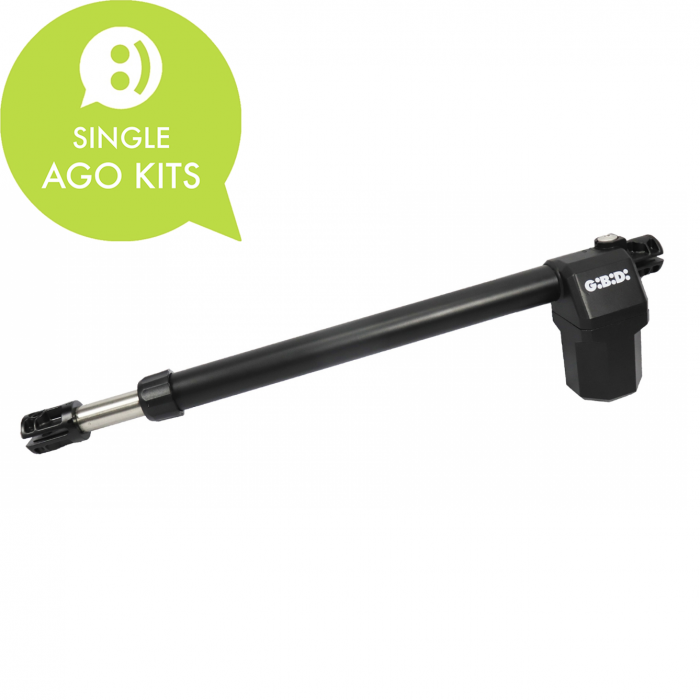

Electromechanical operator in 230Vac with encoder. The AGO can be used to automate medium and large swing gate leaves, for residential usage.
EASY TO INSTALL
The AGO is supplied with pre-formed brackets with optional fixing points, reducing the necessity to fabricate.
SILENT AND FAST
The AGO gears are manufactured in steel and bronze-aluminium. Thanks to this combination of materials, as well as the stainless steel drive screw, it is possible to easily manage the speed of movement across a large range.
DESIGN AND RELIABILITY
The most compact of its category with a tapered and simple design, suitable for every kind of gate. Constructed completely in die-cast aluminium with a powder coated finish.
BATTERY BACK-UP
By the simple addition of an optional battery kit, in the event of a power cut, the gate will still operate. (This is only available on the 24vDC version of the AGO).
| Technical Features | |
| Absorbed Power | 1.5A |
| Adjustable Force | Electronic |
| Adjustable Speed | Yes |
| Encoder/Limit Switches | Physical Stops Only |
| Frequency of Use | 30% |
| Lubrication type | Grease GBD WH-01 |
| Max. Leaf Width | 4m |
| Max. Rod Stroke | 400 mm |
| Max. Thrust Force | 1600N |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 25 seconds |
| Operating Temp | -25°C / +60°C |
| Protection Degree | IP43 |
| Rod Speed | 18 mm/s |
| Type of Use | Residential |
| Weight of Unit | 5.5Kg |
