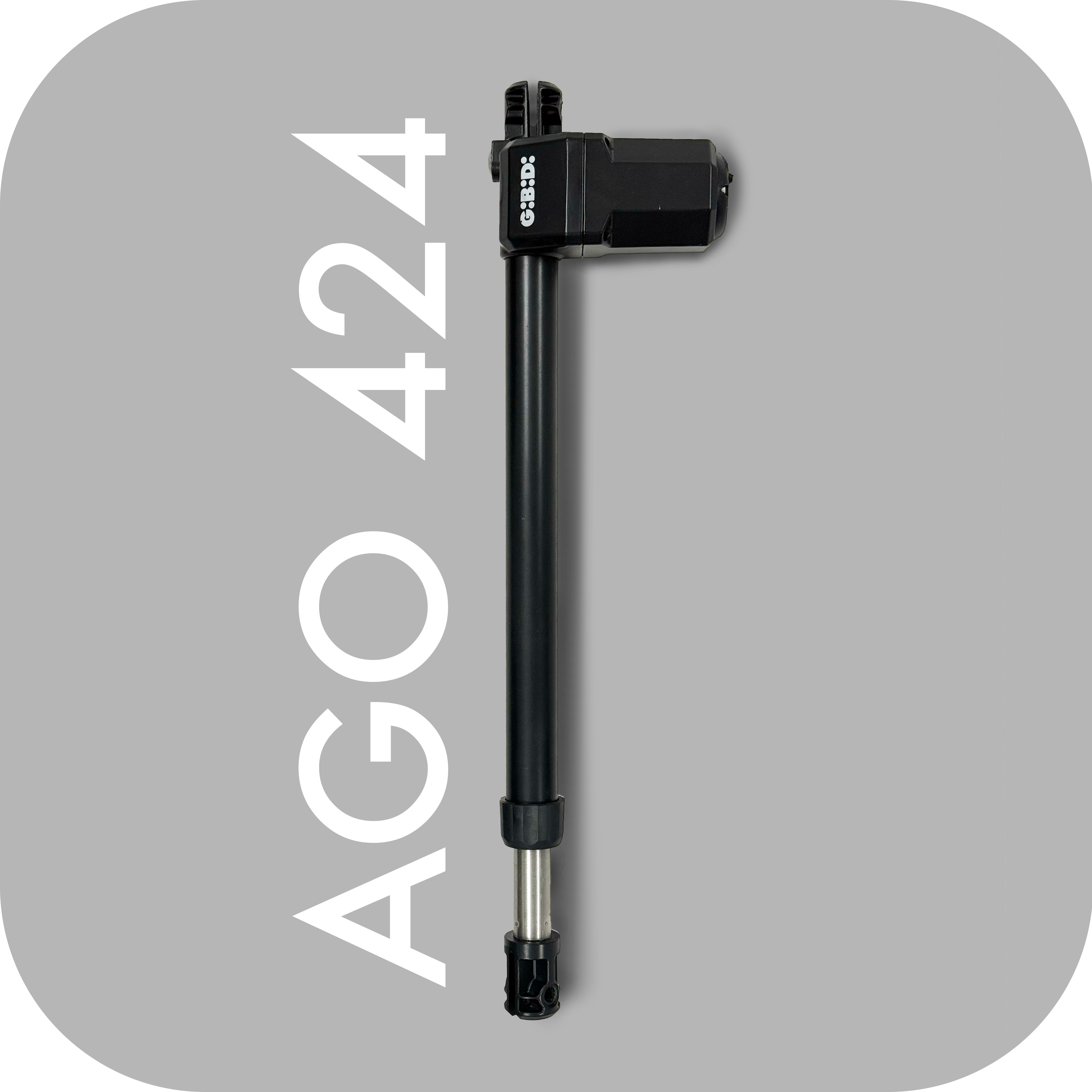

GIBIDI AGO 424E Double Kit | Aboveground Swing Gate Motor 24V

The GIBIDI AGO 424E Double Kit offers reliable, quiet operation for residential swing gates. Strong 24V motor for gates up to 4m wide. Ideal for medium installations.

Kit Includes: 2x Motors (Left and Right Handed), 1x BE24 Control Board, 2x MAKO Remote Controls, 2x VINCI Remote Controls and 1x Pair of Photocells. Fixings Inc.

Electromechanical operator in 24Vdc with encoder. The AGO can be used to automate medium and large swing gate leaves, for both residential and heavy usage.

EASY TO INSTALL
The AGO is supplied with pre-formed brackets with optional fixing points, reducing the necessity to fabricate.

SILENT AND FAST
The AGO gears are manufactured in steel and bronze-aluminium. Thanks to this combination of materials, as well as the stainless steel drive screw, it is possible to easily manage the speed of movement across a large range.

TECHNOLOGICALLY ADVANCED
24Vdc version is equipped with an encoder to simply manage the automatic programming and the adjustment of the integrated anti-crushing sensitivity. The AGO satisfies the requirements of the EN 12453 standards.

DESIGN AND RELIABILITY
The most compact of its category with a tapered and simple design, suitable for every kind of gate. Constructed completely in die-cast aluminium with a powder coated finish.

BATTERY BACK-UP
By the simple addition of an optional battery kit, in the event of a power cut, the gate will still operate. (This is only available on the 24vDC version of the AGO).

Technical Features
Absorbed Power	0.5 - 5.5A
Adjustable Force	Electronic
Adjustable Speed	Yes
Encoder/Limit Switches	Encoder
Frequency of Use	90%
Lubrication type	Grease GBD WH-01
Max. Leaf Width	4m
Max. Rod Stroke	400mm
Max. Thrust Force	1500N
Motor Power Supply	24Vdc
Opening Time (90 degrees)	25 seconds
Operating Temp	-25°C / +60°C
Protection Degree	IP43
Rod Speed	18mm/s
Type of Use	Residential
Weight of Unit	5.5Kg
