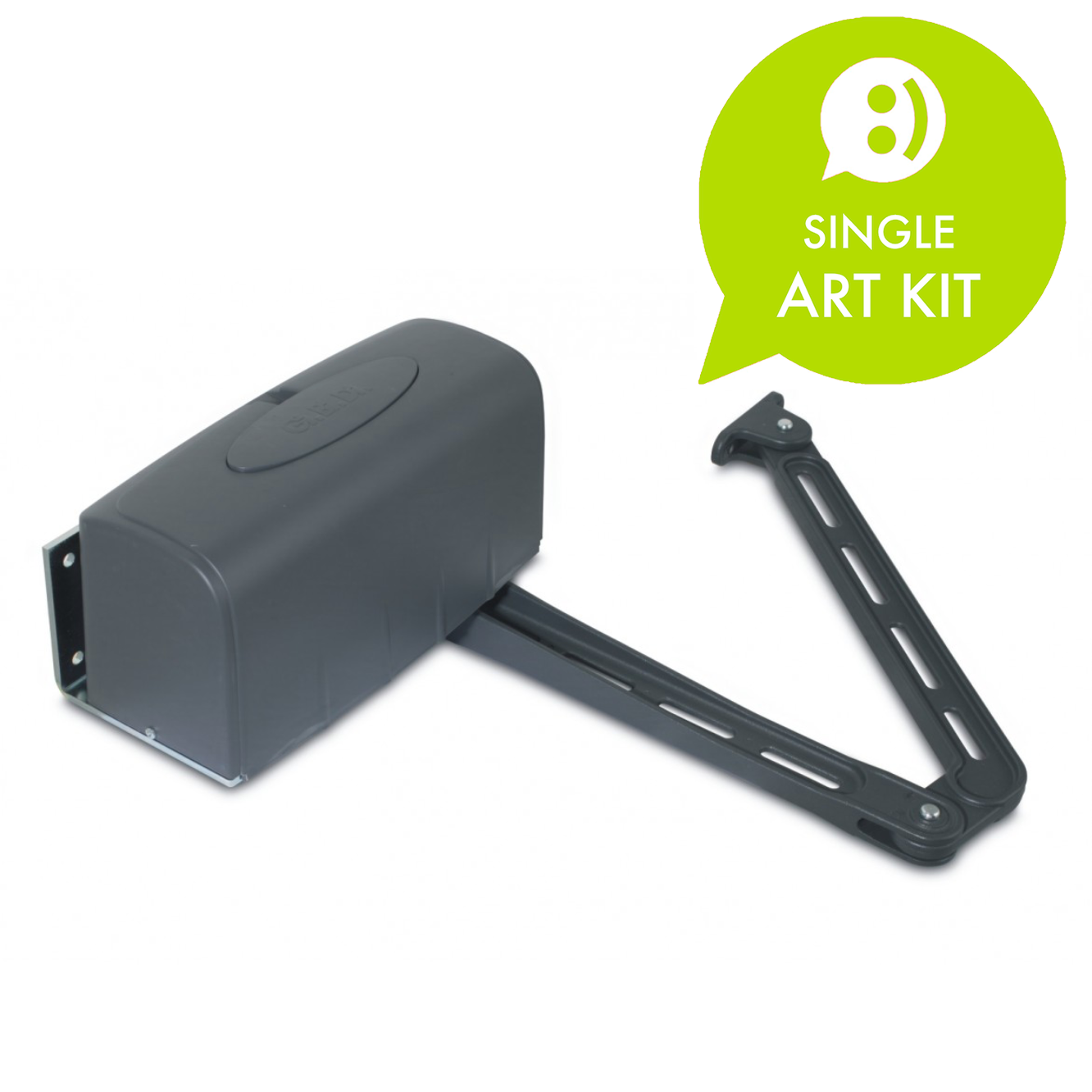

Kit includes: 1x Motors (With Arms AJ30900), 1x BA230 Control Board, 2x MAKO Remote Controls, 2x VINCI Remote Controls, 1x Plug-in Receiver Board (AU02910) and 1x Pair of Photocells.
Electromechanical operators in 230Vac with articulated arm, for swing gates of medium size and weight. For residential use.
EASY TO INSTALL
The ART fixing plates ensure easy installation and negate the need for fabrication. The limit switches are also fully integrated and pre-wired.
SILENT AND FAST
Due to the quality of the materials used in the manufacture of the ART's gears, the system is virtually silent during operation. In the 24Vdc version of the ART, it is possible to adjust the opening speed of the operator.
TECHNOLOGICALLY ADVANCED
The ART is constructed from steel and bronze aluminium, and is a robust, reliable operator. There are a number of accessories available for the ART, such as the battery back up kit for operation upon power failure and choice of articulated arms depending upon the requirements of the installation.
A COMPLETE & RELIABLE RANGE
Thanks to the range of accessories alluded to above, it is possible to install the ART in a range of circumstances, including applications with large piers or pillars, and still obtain opening angles of up to 130 degrees.
| Technical Features | |
| Absorbed Power | 200W |
| Adjustable Force | Electronic - Note: When installed in conjunction with the BA230 control board. |
| Encoder/Limit Switches | Limit Switches O/C |
| Frequency of Use | 30% |
| Lubrication type | Grease GBD WH-01 |
| Max. Leaf Width | 3m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested. |
| Max. Torque | 250Nm |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 11.25 seconds |
| Operating Temp | -20C / +60C |
| Protection Degree | IP53 |
| Shaft Rotation Speed | 7-8 Degrees per Second |
| Type of Use | Residential |
| Weight of Unit | 11.1Kg |
