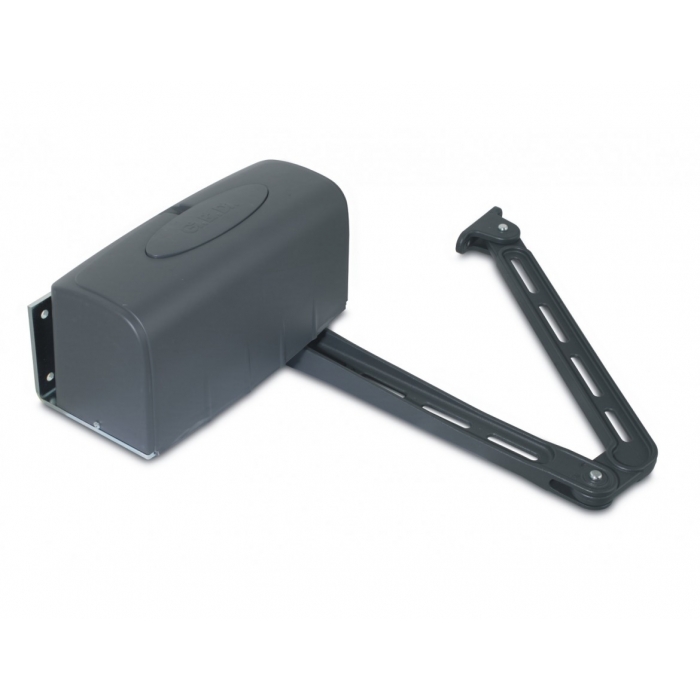

ART 5024 24Vdc, articulated electromechanical motor with open and closed limit switches. Operator only with articulated arm.
| Technical Features | |
| Absorbed Power | 100W |
| Adjustable Force | Electronic - Note: When installed in conjunction with the BA24 control board. |
| Encoder/Limit Switches | Limit Switches O/C |
| Frequency of Use | 40% |
| Lubrication type | Grease GBD WH-01 |
| Max. Leaf Width | 3m - Note: In the case of solid gates or a leaf width of over 2.5m, a supplementary electric lock is suggested. |
| Max. Torque | 250Nm |
| Motor Power Supply | 24Vdc |
| Opening Time (90 degrees) | 15 seconds |
| Operating Temp | -20C / +60C |
| Protection Degree | IP53 |
| Shaft Rotation Speed | 5-6 Degrees per Second |
| Type of Use | Intensive |
| Weight of Unit | 11.1Kg |
Product Code: AJ30900

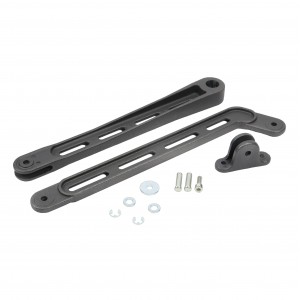

Standard articulated arm, suitable for both the ART5000 and ART5024 motors. ..
Product Code: AJ50139
Reinforced articulated arm, suitable for both the ART5000 and ART5024 motors. ..
Product Code: AJ01482
Kit Includes: 1x Battery Kit (AJ01482)Battery back up kit for BA24, BR24 and SC24 control boards wit..
Product Code: A90502P

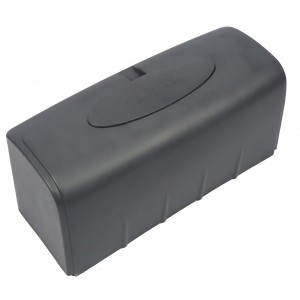

Shell cover for ART series, suitable for both the ART5000 and ART5024 motors...
ART Datasheet
