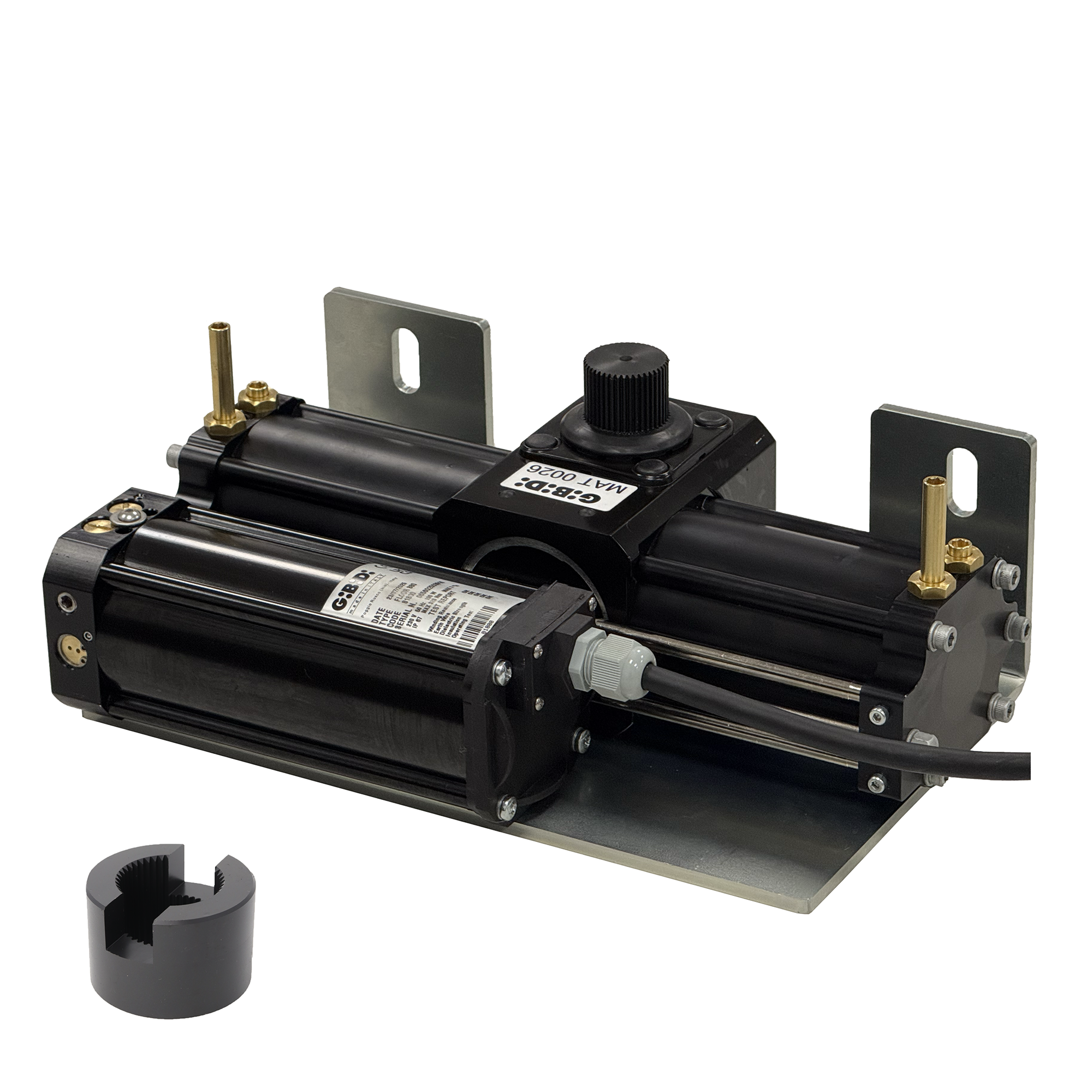

FLOOR 880, 230Vac, underground hydraulic motor. Operator only. Includes floor coupling piece.

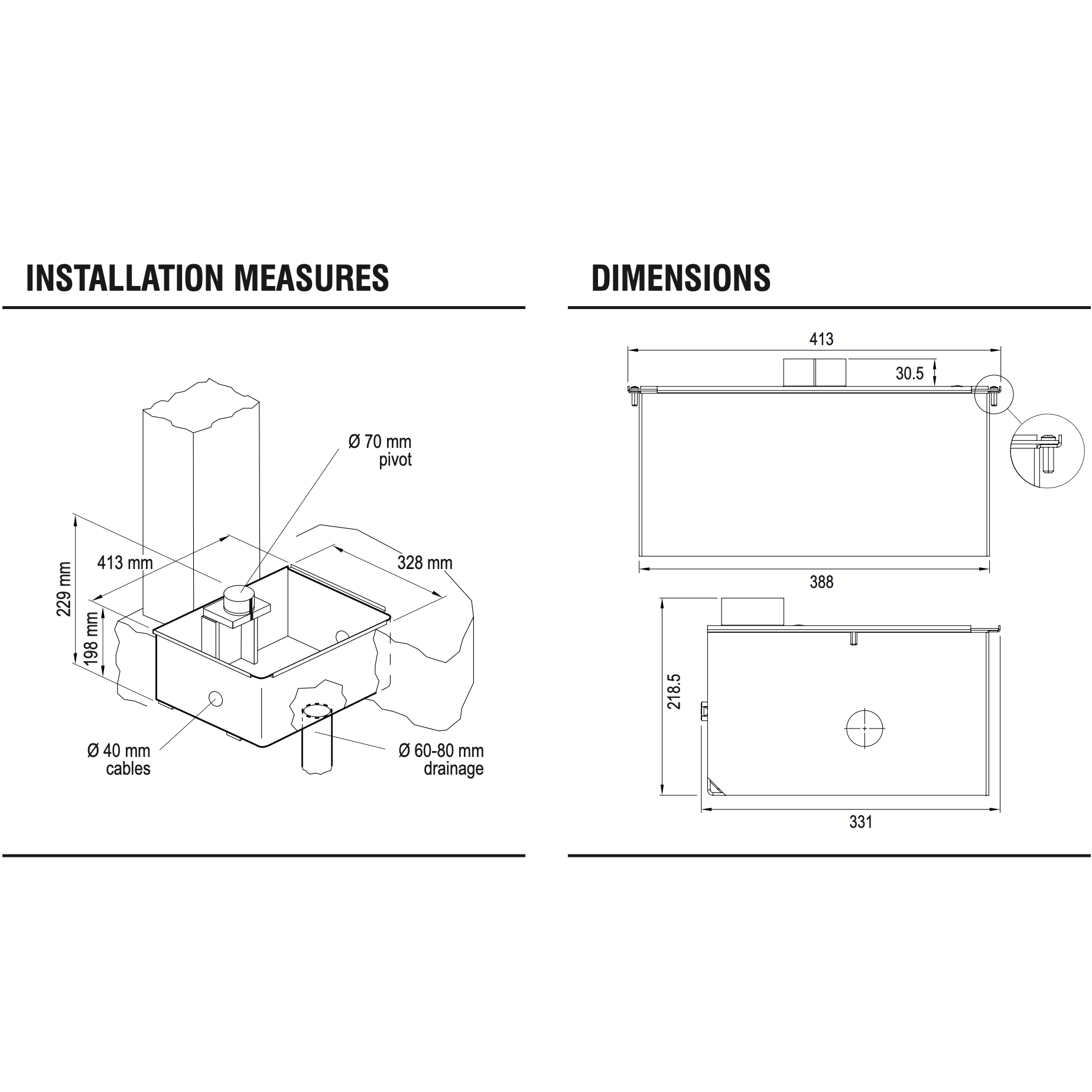

NB: The FLOOR 880 is the direct replacement for the FLOOR 810 and FLOOR 830 models. Please take note of the datasheet provided when purchasing, which outlines the minor adaption required to the foundation box when swopping out a FLOOR 810/830 for a FLOOR 880.
| Technical Features | |
| Absorbed Power | 190W |
| Adjustable Force | Hydraulic |
| Adjustable Speed | Yes |
| Encoder/Limit Switches | Optional Limit Switches |
| Frequency of Use | 40% |
| Lubrication type | Oil GBD PH-03 |
| Max. Leaf Width | 2.5m - Note: In the case of solid gates or a leaf width over 2m, a supplementary electric lock is suggested. |
| Max. Opening Angle | 180 Degrees |
| Max. Torque | 300Nm |
| Motor Power Supply | 230Vac - 50/60Hz |
| Opening Time (90 degrees) | 12.5 seconds |
| Operating Temp | -20C / +60C |
| Protection Level | IP67 |
| Shaft Rotation Speed | 7 Degrees per Second |
| Type of Use | Intensive |
| Weight of Unit | 16kg |
