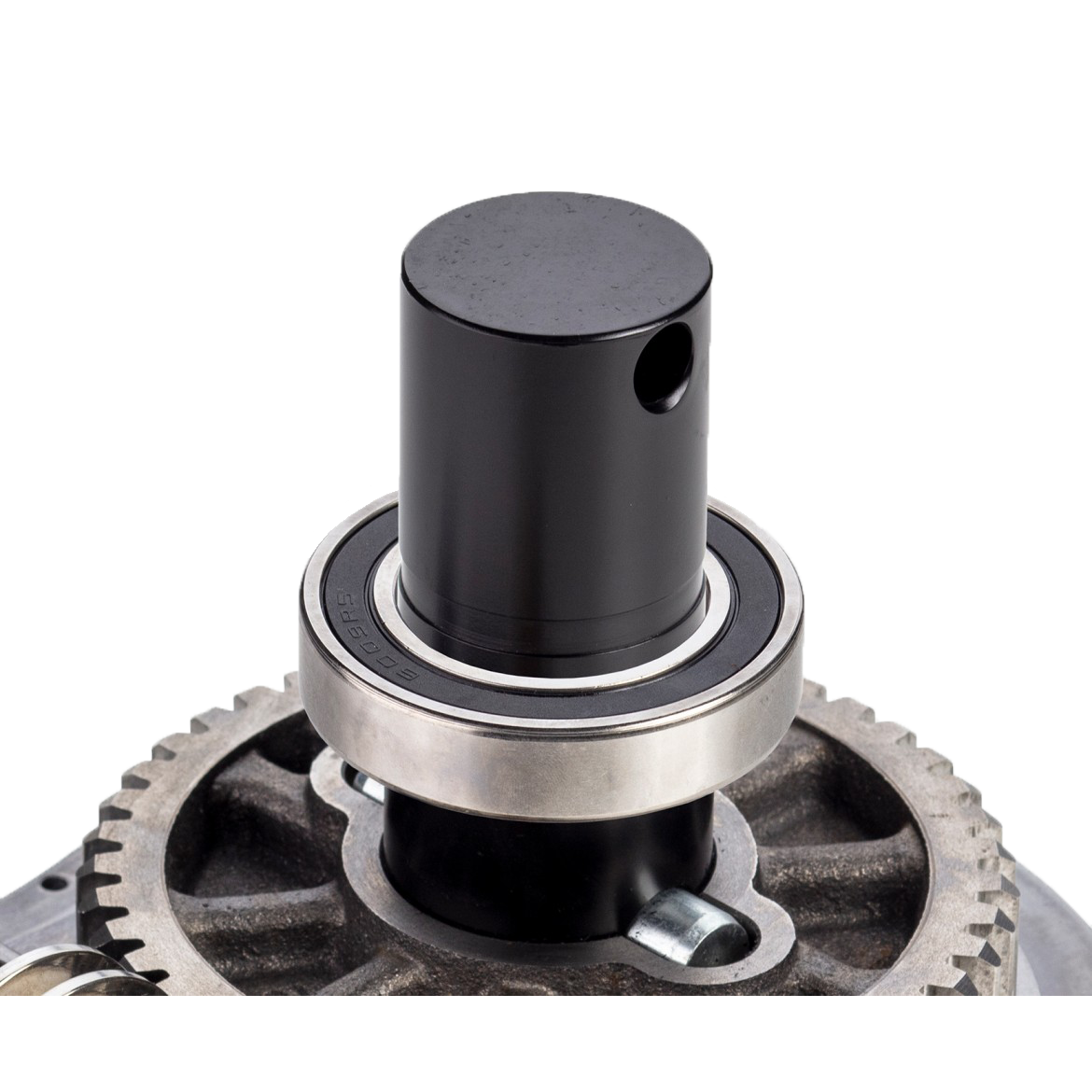

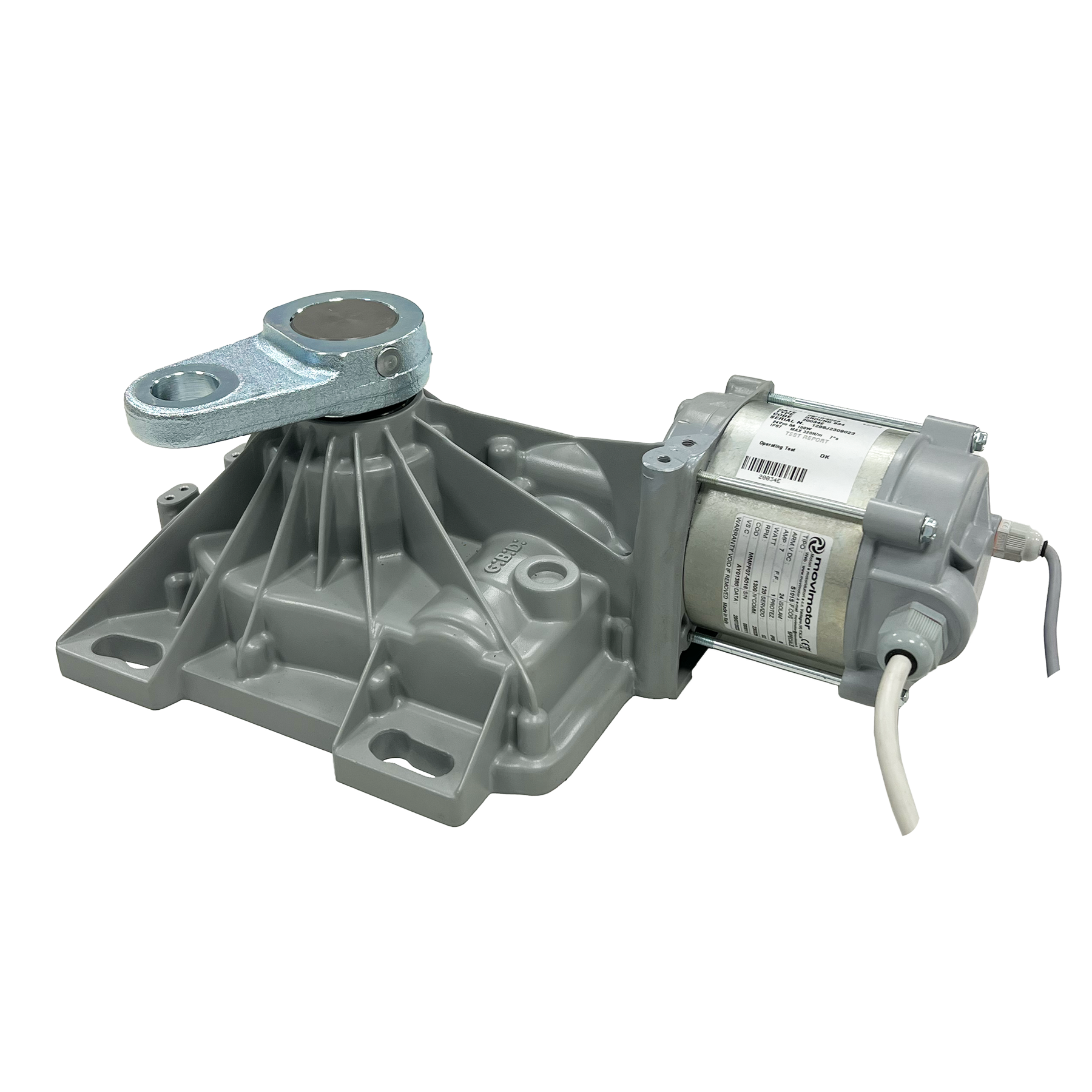

GROUND 634, 24Vdc, underground electromechanical motor with built in encoders, rotor pin, ground arm.
| Technical Features | |
| Absorbed Power | 150W |
| Adjustable Force | Electronic |
| Adjustable Speed | Electronic - Note: When installed in conjunction with the BA230 control board. |
| Encoder/Limit Switches | Built-in encoder |
| Frequency of Use | Intensive |
| Lubrication type | Grease GBD WH-01 |
| Max. Leaf Width | 3.5m - Note: In the case of solid gates or a leaf width of over 2m, a supplementary electric lock is suggested. |
| Max. Opening Angle | 110 Degrees |
| Max. Torque | 320Nm |
| Motor Power Supply | 24Vdc |
| Opening Time (90 degrees) | 12.5 seconds |
| Operating Temp | -20C / +60C |
| Protection Degree | IP67 |
| Shaft Rotation Speed | 7 Degrees per Second |
| Type of Use | Intensive |
| Weight of Unit | 11.1Kg |
