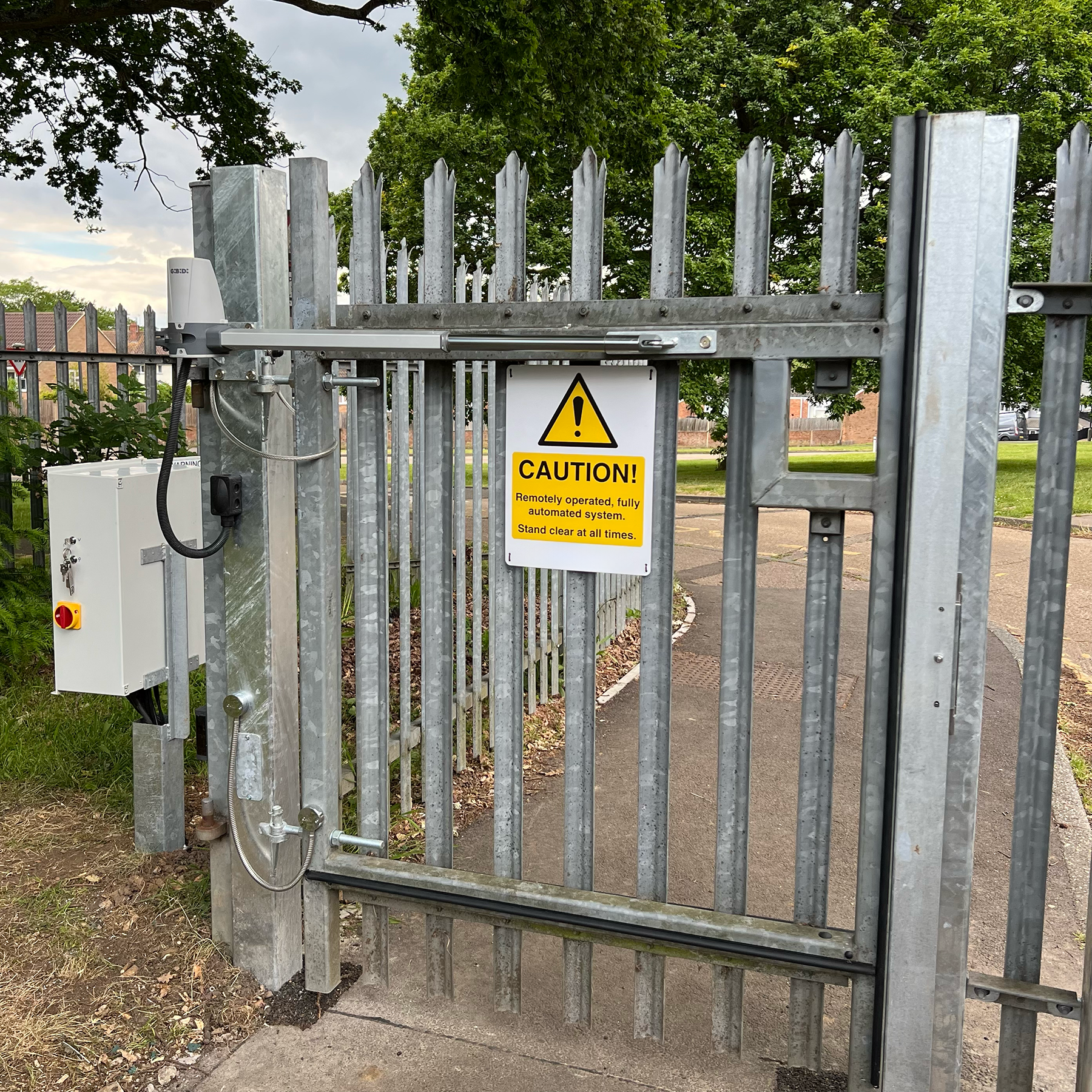

The way the motor is handed is based on the installers perspective, inside the gates, looking out on to the road.

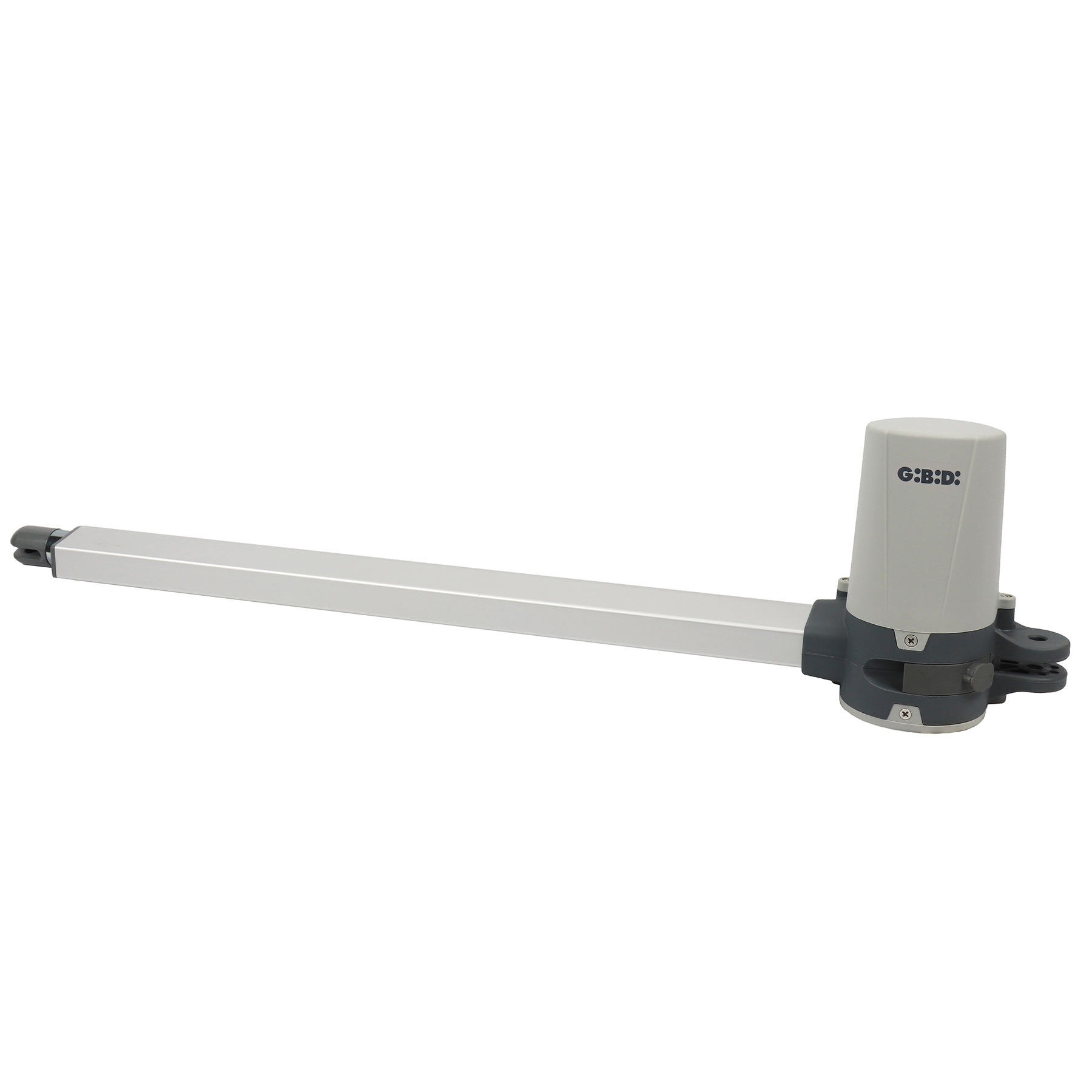

Electromechanical operator with encoder
Electromechanical operator in 24Vdc with encoder, for swinging gates of small size and weight, for residential use.
EASY TO INSTALL
Thanks to the adjustable brackets, that it is not necessary to weld. The control unit offers the complete self-learning function.
SILENT AND FAST
Made with gears in steel, bronze-aluminium and special polymers. This combination allows managing a high and adjustable speed of movement.
TECHNOLOGICAL AND SAFE
Built-in innovative encoder technology. Thanks to the GIBIDI control unit provided with all the inputs for safety devices, included the encoder sensor for the adjustment of the integrated anti-crushing sensitivity it is possible to meet the highest safety level, as provided in EN 12453 standards.
DESIGN
The most compact of its category with a tapered and simple design, suitable for every kind of gate.
POWER CUT/BATTERY BACK-UP
By the use of an optional battery kit, the gates can operate during the loss of a mains power supply.
| Technical Features | |
| Absorbed Power | 100W |
| Adjustable Force | Electronic |
| Adjustable Speed | Yes - Note: When installed in conjunction with the BE24 control board. |
| Encoder/Limit Switches | Encoder |
| Frequency of Use | Intensive |
| Lubrication type | Grease GBD WH-01 |
| Max. Leaf Width | 2.5m - Note: In the case of solid gates or a leaf width over 2m, a supplementary electric lock is suggested. |
| Max. Rod Stroke | 360mm |
| Max. Thrust Force | 1000N |
| Motor Power Supply | 24vDC |
| Opening Time (90 degrees) | 20 seconds |
| Operating Temp | -20C / +60C |
| Protection Degree | IP44 |
| Rod Speed | 20mm/S |
| Type of Use | Residential |
| Weight of Unit | 4.5kg |
